Description

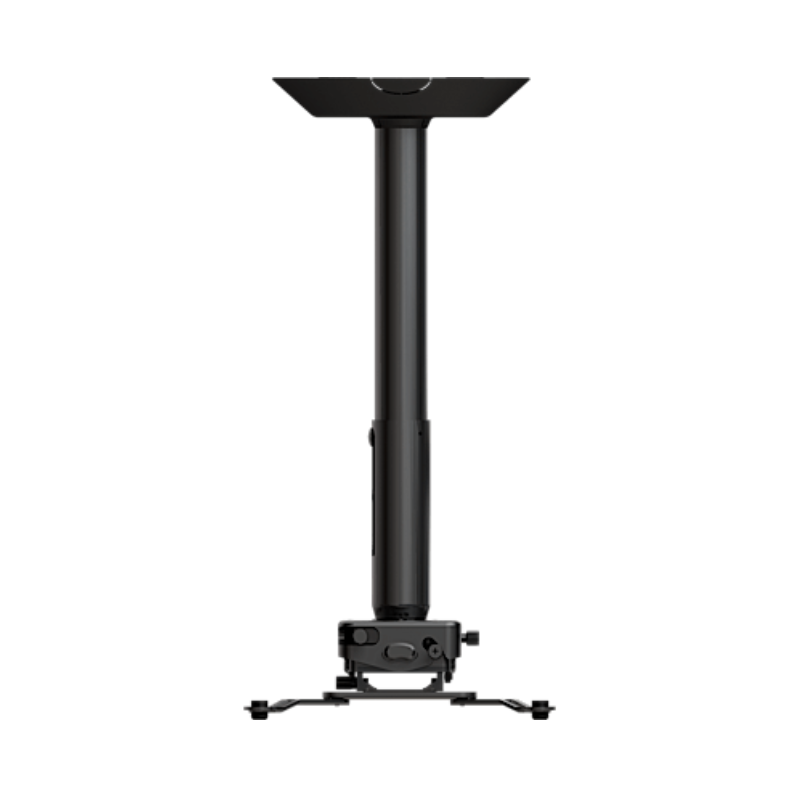

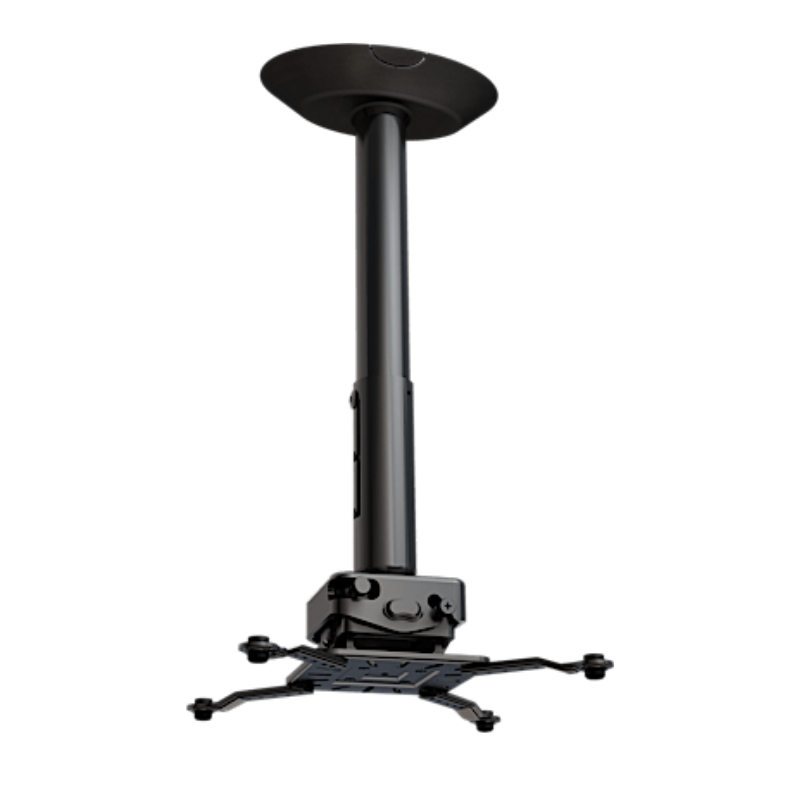

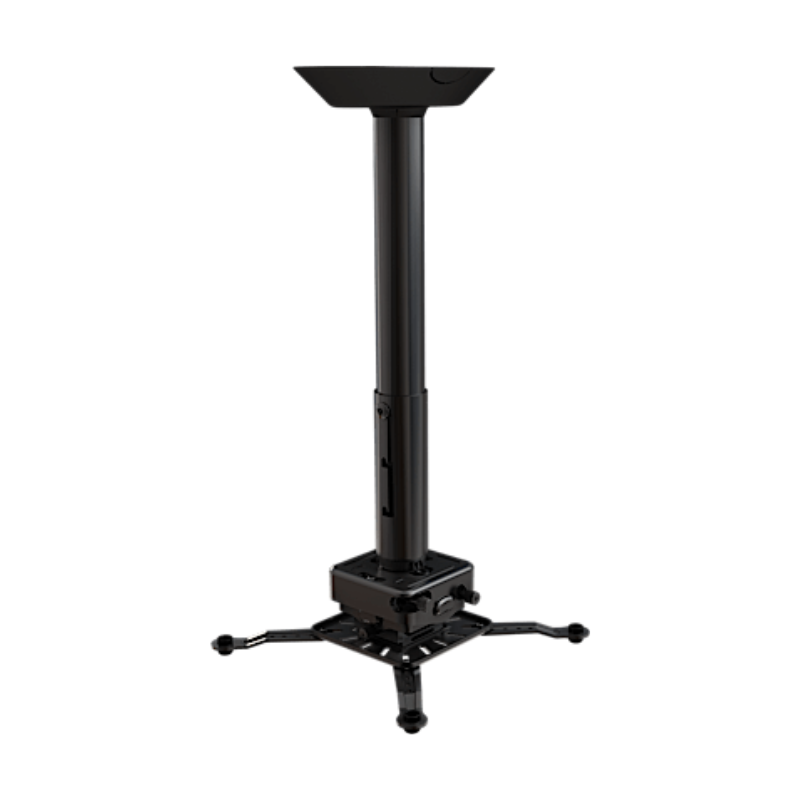

The Projector Ceiling Mount with Extension Bar is built for maximum versatility, making it suitable for both residential and commercial projector installations. This ceiling kit includes a JR3 universal adapter and provides 9 different drop lengths: 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10'.
The mount ships with a pre-assembled interface for fast setup, while integrated roll, pitch, and yaw adjustments allow precise projector alignment. A 1" incremental drop-length adjustment and quick release mechanism simplify servicing or future changes. For safety, security hardware is provided at every joint to ensure a stable installation.
The built-in through-column cable routing keeps wires concealed for a neat and professional appearance. Pre-labeled hardware packs make assembly quicker, and the system works with all 1.5" NPT threaded pipe standards.
What’s Included:
Product Features
Adjustable Drop Length
Select from nine drop ranges—6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10"—to match your ceiling height and installation requirements.
Secure Connections
Every connection point comes with security hardware for safe and reliable mounting in any setting.
Pre-Assembled Interface
Arrives pre-assembled, allowing for quick and simple installation.
Full Adjustability
Fine-tune alignment with roll (±8°), pitch (±15°), and yaw (360° rotation) controls.
Quick Release Design
Detach the projector easily for service or upgrades without taking down the whole mount.
Concealed Cable Routing
Through-column cable channels keep wiring hidden for a streamlined finish.
Organized Hardware Pack
Pre-sorted parts reduce setup time and simplify assembly.
What's Included
Included with Your Purchase:
-
Projector Ceiling Mount with Extension Bar
-

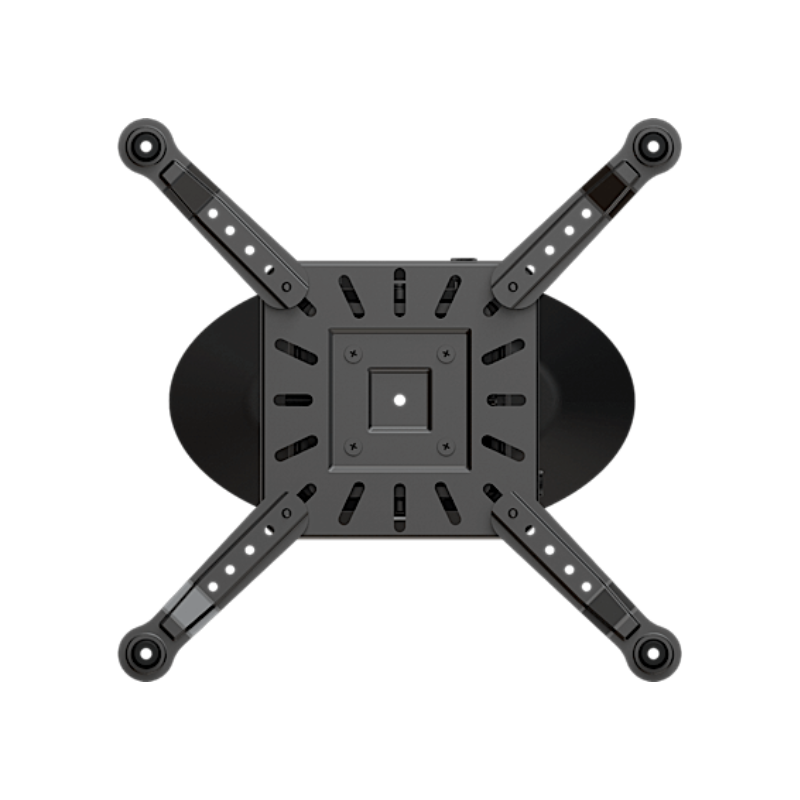

JR3 universal adapter
-
Security hardware for all connection points
-
Pre-sorted hardware pack
-
Quick release mechanism
-
Built-in roll, pitch, and yaw adjusters
Specifications
-
Weight Capacity: 70 lbs (31.8 kg)
-
Max Mounting Pattern: 13.8" (351.5 mm) diameter
-
Pitch (Up/Down): ±15°
-
Roll (Side to Side): ±8°
-
Rotation (Yaw): 360°
-
Drop Length Options: 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', 8'-10'
-
Height Adjustment: 1" increments
-
Thread Compatibility: 1.5" NPT
-
Mounting Surface: Wood joist, structural wood, or concrete (HE4 accessory required)
-
Joist Spacing: Single joist
-
Construction: Aluminum and cold-rolled steel
-
Finish: Scratch-resistant epoxy powder coat
-
Product Weight: 6.2 lb (JKR3-11A), 7.5 lb (JKR3-18A), 8.6 lb (JKR3-24A)
-
Package Dimensions: 20"x10"x6" (all models)
-
Color: Black
-

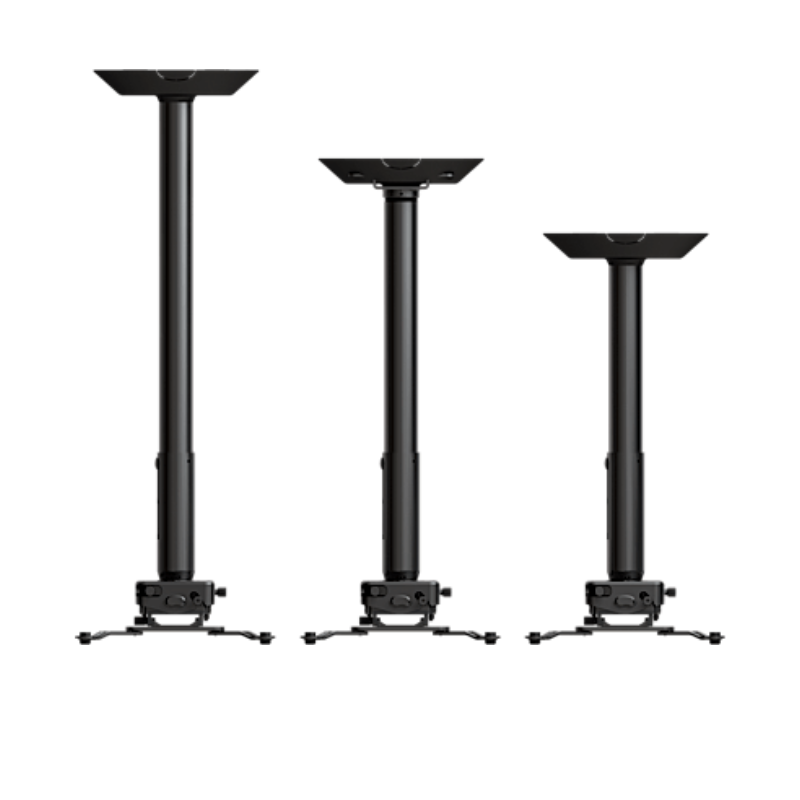

Model Numbers: JKR3-11A (6"–11"), JKR3-18A (12"–18"), JKR3-24A (18"–24")
-
Warranty: 10 years
FAQ
Q: Is this mount compatible with most projectors?
A: Yes, the JR3 universal adapter fits a wide variety of mounting patterns, covering nearly all current projector models.
Q: Can it be attached to concrete ceilings?
A: Yes, when used with the HE4 accessory, it can be installed on structural concrete surfaces.
Q: Can I adjust the projector after installation?
A: Yes, it offers roll, pitch, and yaw adjustments even once the projector is mounted.
Q: How should I choose the right drop length?
A: Pick from the listed drop ranges depending on your ceiling height. For optimal results, the projector lens should be no higher than the top edge of your impact screen.
