Description

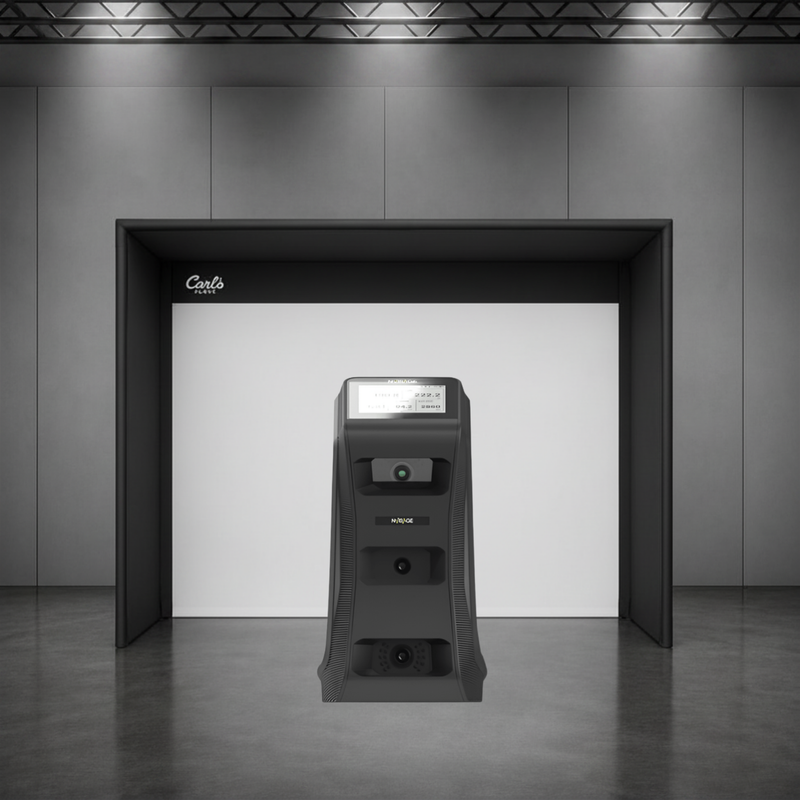

The NVISAGE NEO-E Carl’s Place Pro Golf Simulator Package combines a portable, high-precision launch monitor with a premium enclosure system, delivering a complete all-in-one solution for home or commercial golf simulation. Designed for accuracy, convenience, and immersive play, this bundle provides everything needed to create a professional indoor golf experience.

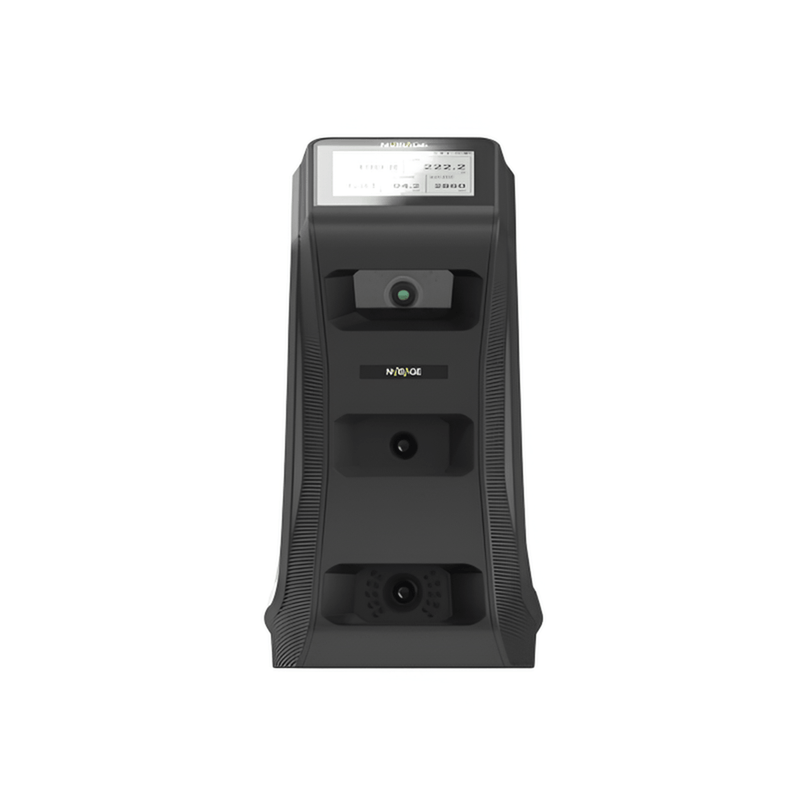

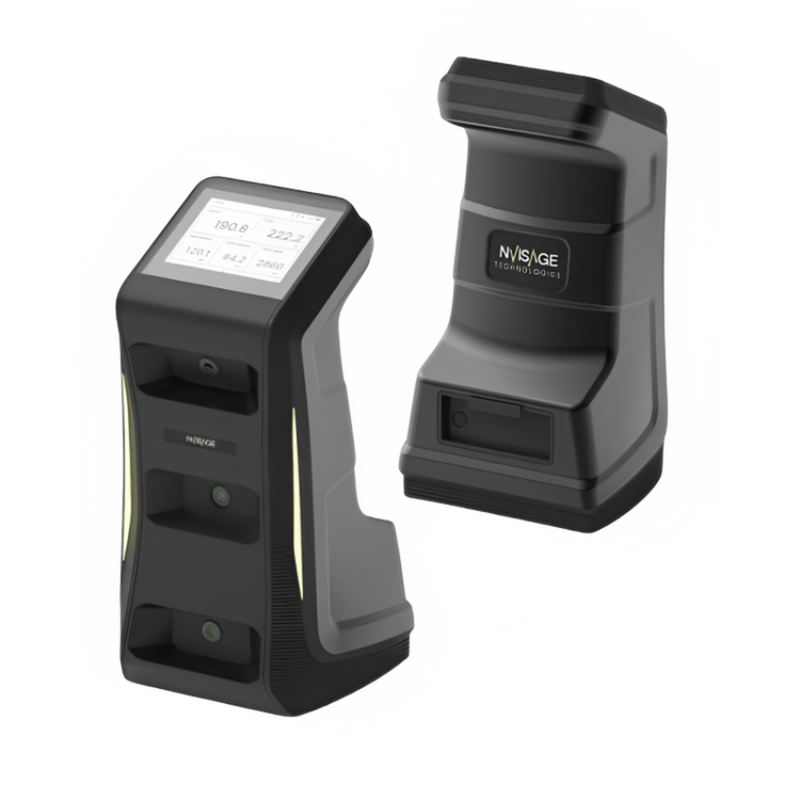

The NVISAGE NEO-E Launch Monitor features a three-camera system that captures detailed ball and club data, including ball speed, spin, launch angles, and advanced club metrics with exceptional accuracy. Its compact, travel-ready design, combined with a responsive 4.3-inch touchscreen and dual connectivity options, ensures a smooth and intuitive experience whether used indoors or outdoors. Built for versatility, it works with all club types without requiring marked balls, while optional stickers allow for more advanced club analysis.
With an IP65-rated design for dust and water resistance and a long-lasting battery, the NEO-E is built to perform reliably in a wide range of environments. Its portable design and powerful tracking capabilities make it ideal for both dedicated simulator setups and flexible practice sessions.
Paired with the Carl’s Place C-Series Pro Golf Simulator Enclosure, this package includes a premium impact screen, your choice of screen material, and all essential accessories. The seamless turf-to-screen design, borderless bottom edge, and reinforced structure create a fully immersive, distraction-free environment while helping reduce bounceback.
Product Features
NVISAGE NEO-E Launch Monitor
-
Lightweight, Portable Build
At just 6.2 lbs, the NEO-E is easy to carry and perfect for training at home, on the driving range, or while traveling.
- Comprehensive Data Tracking
Delivers advanced ball, club, and flight metrics including spin rate, launch angle, club path, and impact location for a complete performance overview.
- Built for Any Environment
Engineered with IP65 water and dust resistance for consistent use indoors or outdoors.
- Integrated Touchscreen Display
The 4.3" LCD offers crisp visuals, quick setup, and real-time feedback with a simple, user-friendly interface.
- Extended Battery Life
Provides up to 5 hours of operation, keeping you powered for long practice sessions without interruption.
-
Seamless Connectivity
Supports both Wi-Fi and wired Ethernet (LAN), working smoothly with MURLIE and third-party platforms such as E6 Connect and GSPro.
-
Wide Hitting Zone
Measures 12.6" x 9.4" with a 14.2" data collection range for consistent, reliable shot tracking.
-
Enhanced Club Data
Optional stickers provide additional metrics like impact location, face angle, smash factor, and more.
Carl’s Place Pro Enclosure Package
-
BlackStop™ One-Piece Knit Enclosure
Carl's Place premium, durable enclosure material is engineered to block light from the hitting area while enhancing color and contrast for a more immersive experience.
-
Foam Inserts Included
Pre-cut foam inserts fit behind the flaps to protect the frame from ricochets, reduce bounceback, and create a quieter, safer setup.
-
Detachable Flaps with Reinforced Fasteners
Independent flaps now feature wider hook-and-loop strips, maintaining secure placement even under repeated impacts while keeping a clean, professional look.
-
Redesigned One-Piece Ceiling and Sidewalls
Simplifying assembly to around two hours, the updated one-piece ceiling and sidewalls use BlackStop™ material and streamline the setup process.
-
Reduced Bounceback System
A three-layer impact screen, tensioned bottom cable, and removable zip ties work together to absorb shots and minimize rebound.
-
Versatile Crossbar System (Optional)
The standalone ceiling crossbar slides forward or backward for optimal positioning and supports overhead launch monitors, projectors, and lighting.
-
Pipe Framing Kit (Optional)
Choose the pre-cut, labeled Pipe Framing Kit for an easy plug-and-play build, or use 2-inch EMT locally with the included cut list.
-
Back Cover Kit (Optional)
The Back Cover Kit blocks rear ambient light and conceals pipe framing, giving the enclosure a polished, finished look.
-
Safety Baffles (Optional)
Ceiling-mounted baffles hang across the enclosure width to catch high-angle shots and deflect them safely, protecting both the enclosure and surroundings.
What's Included
NVISAGE NEO-E Launch Monitor
- NVISAGE NEO-E Launch Monitor
- MURLIE Driving Range Software
- Club Sticker Set
- Adaptor
- Alignment Tool
- Outdoor Stand
- User Manual
Carl’s Place Pro Enclosure Package
- Carl’s Place Pro Golf Simulator Enclosure
- Impact Screen (Premium, or High-Contrast Gray)
- BlackStop™ One-Piece Knit Enclosure with Ceiling and Sidewalls
- Foam Inserts
- Detachable Flaps with Hook-and-Loop Fastener
- Steel Fittings and Corner Fittings
- Zip Ties
- Bottom Cable with Springs and Cable Receivers
- Bag with Literature and Hardware
Please Note: The Pro Golf Simulator Enclosure Kit does not include pipe framing. To complete the frame assembly, you must either purchase the Carl’s Place Pipe Framing Kit or obtain 2-inch EMT (electrical metal tubing) locally.
What's Measured
Ball Data:
- Ball Speed
- Total Spin
- Back Spin
- Side Spin
- Spin Axis
- Launch Angle
- Launch Direction
Club Data:
- Club Speed
- Club Path
- Attack Angle
- Face Angle
- Dynamic Loft
- Smash Factor
- Face to Path
- Impact Point
Flight Data:
- Carry Distance
- Total Distance
- Run
- Side Total
- Distance to Apex
- Apex
- Descent Angle
- Ball Flight Type
- Flight Time
- Curve
Specifications
NVISAGE NEO-E Launch Monitor
-
Dimensions: 6.3"W x 12.1"H x 5.8"D
-
Weight: 6.2 lb (2.7 kg)
-
Use: Indoor & Outdoor
-
Battery: Up to 5 Hours
-
Connectivity: Bluetooth & Wired Ethernet (LAN)
-
Display: 4.3" LCD (320 x 240 pixels)
-
Resistance: IP65 Rated (Water/Dust)
-
Operating Temp: 14°F to 113°F
-
Strike Zone: 12.6"W x 9.4"D
-
Data Collection Distance: 14.2"
-
Ball Compatibility: Any Ball Type
-
Cameras: 3
-
Target Alignment: Included
Carl's Place Pro Golf Enclosure
-
Available Depths: 5', 8', 10', 15' (frame footprint extends ~9.5' Behind Screen)
-
Ceiling Buffer Space Recommended: 6–7 inches
-
Side Clearance Recommended: 2–3 inches each side (subtract 4–6 Inches from available width)
-
Minimum Rear Clearance: 9.5" behind enclosure for rear fitting
-
Crossbar Placement: Adjustable. On 15' depth enclosure, crossbar is added ~7.5' from the impact screen and is also movable.
-
Frame Material (EMT): 2-Inch EMT (True O.D. 2.197" / 55.8 mm)
-
Enclosure Cover: BlackStop™ one-piece knit ceiling and sidewalls
-
Flaps: Detachable with hook-and-loop fastener
-
Impact Screen Installation: Zip ties and bottom cable with springs and receivers
-
Screen Type: Three-layer, heavy-duty, Premium or High-Contrast Gray Golf Impact Screen
Requirements
PC Requirements
- OS: Windows 10/11 (64-bit only)
- CPU: Intel i5 8400 minimum / Intel i7 10th Gen recommended
- RAM: 8 GB minimum / 16 GB recommended
- GPU: GeForce GTX 1060 minimum / RTX 30 Series recommended
- Storage: 50 GB minimum
FAQ
Q: Can I use the NEO-E outside?
A: Yes, it’s IP65 rated for dust and water protection and works in most outdoor conditions.
Q: Do I need special golf balls?
A: No, it supports any ball type—no logos or markings required.
Q: Is the club sticker required?
A: Stickers are optional, but they unlock additional club insights such as face angle and strike point.
Q: What performance data is captured?
A: Ball and club speed, spin rates, launch angle, carry distance, and many more metrics.
Q: Is it PC compatible?
A: Yes, with Windows 10 or 11 (64-bit). It is not compatible with Mac or Linux.
Q: What software works with it?
A: It integrates with MURLIE and is compatible with popular options like E6 Connect and GSPro.
