Description
Bring your golf simulator to life with the BenQ AK800ST, delivering crisp visuals, rich colors, and lifelike course details for an immersive indoor golfing experience.
Enjoy a simpler installation with the built-in camera system, which helps align the projected image to flat or curved impact screens. Motorized zoom and autofocus allow convenient adjustments using the remote control, reducing the need for manual setup.
Designed for long-term convenience, the sealed laser light source eliminates the need for lamp or filter replacements. With Screen Memory, you can quickly switch between saved display settings for golf simulation, movies, and gaming, making the AK800ST a versatile addition to your home entertainment space.
What's Included:
- BenQ AK800ST 4K Short-Throw Laser Projector
- Remote Control with Batteries
- 1.8 m Power Cord
- Quick Start Guide
-
Warranty Card
Delivery Notice: A signature is required upon delivery. Please ensure someone is available to receive and sign for the package. If delivery cannot be completed, the carrier may redirect the shipment to a nearby pickup location for collection.
Product Features
True 4K UHD Clarity
Experience detailed golf simulation with 8.3 million addressable pixels, delivering sharp course visuals, defined terrain, and clear hazard details.
Golf Mode 2.0 Image Processing
Advanced video processing enhances course colors, textures, and visual details to create a more immersive simulator experience.
97% Rec. 709 Color Coverage
Reproduces natural-looking colors with 97% Rec. 709 coverage, helping bring realistic course landscapes and surroundings to life.
3,000,000:1 Contrast Ratio
High contrast performance enhances image depth and detail, helping distinguish greens, shadows, and course features.
Auto Screen Fit 2.0
The integrated camera detects screen dimensions and contours to simplify image alignment on flat or curved impact screens.
Smart Warping Technology
Advanced calibration tools provide additional adjustment points after initial screen alignment, making it easier to refine projection geometry on curved surfaces.
Screen Fill Options
Supports six display aspect ratios: 16:9, 16:10, 3:2, 4:3, 5:4, and 1:1, offering flexible image sizing for different screen configurations.
Motorized Zoom and Autofocus
Adjust the projected image using the remote control without physically repositioning the projector. One-touch autofocus helps maintain a sharp picture.
Flexible Entertainment Modes
Screen Memory allows you to switch between saved display configurations for golf simulation, movies, and gaming.
Ambient Light Adjustment
The built-in camera monitors room lighting and adjusts color and saturation to help maintain suitable image quality in changing conditions.
Sealed IP5X Laser Light Source
The dust-resistant laser engine is rated for up to 20,000 hours of operation, reducing routine maintenance by eliminating traditional lamp and filter replacements.
What's Included
Included with your purchase:
- BenQ AK800ST 4K Short-Throw Laser Projector
- Remote Control with Batteries
- 1.8 m Power Cord
- Quick Start Guide
-
Warranty Card
Specifications
Display:
-
Brightness: 5,000 ANSI lumens
-
Resolution: 4K UHD (3840 x 2160)
-
Native Aspect Ratio: 16:9
-
Supported Screen Ratios: 1:1, 5:4, 3:2, 4:3, 16:9, 16:10
-
Contrast Ratio (FOFO): 3,000,000:1
-
Color Depth: 30-bit (1.07 billion colors)
-
Light Source: Laser
-
Light Source Lifespan: 20,000 hours (Normal); 30,000 hours (Eco)
Optics and Projection:
-
Throw Ratio: 0.69–0.83
-
Zoom: 1.2x
-
Lens Aperture: F/2.49–2.7
-
Focal Length: 10.31–12.32 mm
-
Projection Offset: 102.5% (full height)
-
Keystone Correction: 3D adjustment; vertical ±30°, horizontal ±30°, rotation ±30°
Image Performance:
-
Rec. 709 Color Coverage: 97%
-
Available Picture Modes: Bright Golf, Bright Presentation, HDR Golf, Bright, Cinema, Game, Golf, HDR Game, HDR10, HLG, Sports, User
Video Compatibility:
-
Input Lag: 18.1 ms (4K at 60 Hz); 18.6 ms (1080p at 60 Hz); 9.7 ms (1080p at 120 Hz); 4.8 ms (1080p at 240 Hz)
-
Supported Resolutions: VGA (640 x 480) through 4K UHD (3840 x 2160)
-
Vertical Scan Frequency: 23–240 Hz

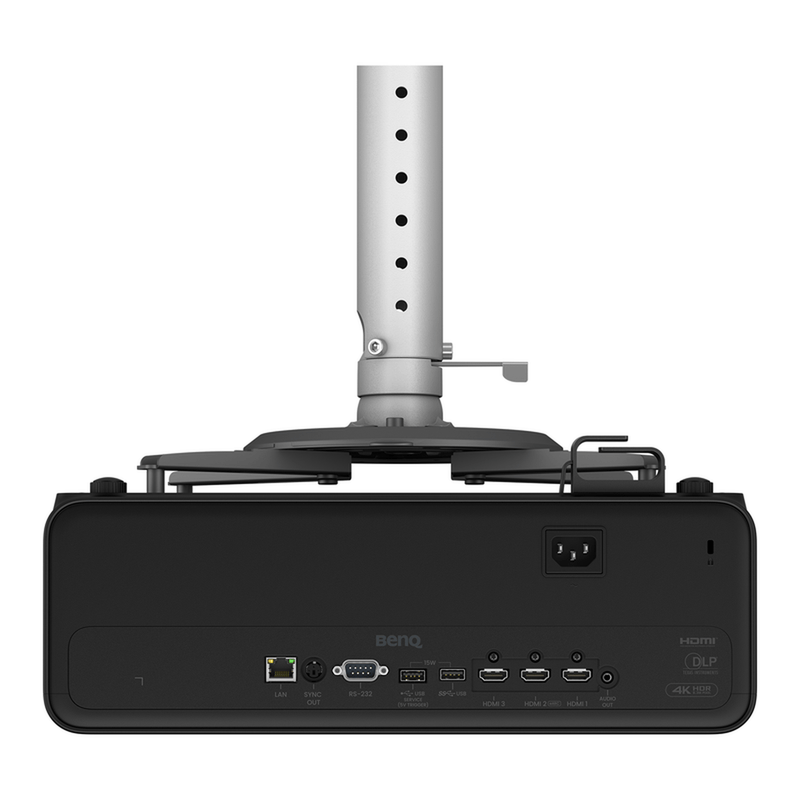

Connectivity:
-
HDMI: 3 ports (HDMI 2.1, HDCP 2.3)
- HDMI-1 and HDMI-2 support 4K at 60 Hz with ALLM
- HDMI-2 supports eARC
-
USB Type-A: 2 ports (USB 2.0 and USB 3.0)
-
LAN: 1 x RJ45
-
3D Sync Output: 1
-
RS232 Input: 1 x DB-9 pin
-
Audio Output: 1 x 3.5 mm jack
Audio:
-
Built-In Speaker: 10 W
-
HDMI Audio Return: eARC, 7.1-channel support
Operating Environment and Power:
-
Operating Temperature: 0–40°C
-
Power Supply: AC 100–240 V, 50/60 Hz
-
Typical Power Consumption (110 V): 285.1 W
-
Standby Power Consumption: Less than 0.5 W
-
Acoustic Noise: 34 dB (Typical); 29 dB (Eco)
Physical Dimensions:
-
Dimensions (W x H x D): 387.9 x 140 x 301.9 mm (15.3" x 5.5" x 11.9", including feet)
-
Net Weight: 5.9 kg (13 lbs)
Projection System:
-
Technology: DLP
-
Wireless Projection: iOS screen mirroring and Google Cast; Miracast supported with the optional EZC-5201BS dongle
FAQ
Q: What is the throw ratio of the BenQ AK800ST?
A: It features a 0.69–0.83 throw ratio and 1.2x motorized zoom, offering flexibility when positioning the projector.
Q: What is the projector's brightness rating?
A: The AK800ST delivers 5,000 ANSI lumens for bright, detailed visuals in golf simulator and entertainment environments.
Q: Can it project onto curved impact screens?
A: Yes. Auto Screen Fit 2.0 uses the built-in camera to help align images on flat or curved screens, while Smart Warping provides additional tools for fine-tuning curved-screen geometry.
Q: What is the expected laser light source lifespan?
A: The sealed laser engine is rated for 20,000 hours in Normal mode and up to 30,000 hours in Eco mode. It eliminates the need for conventional lamp and filter replacements.

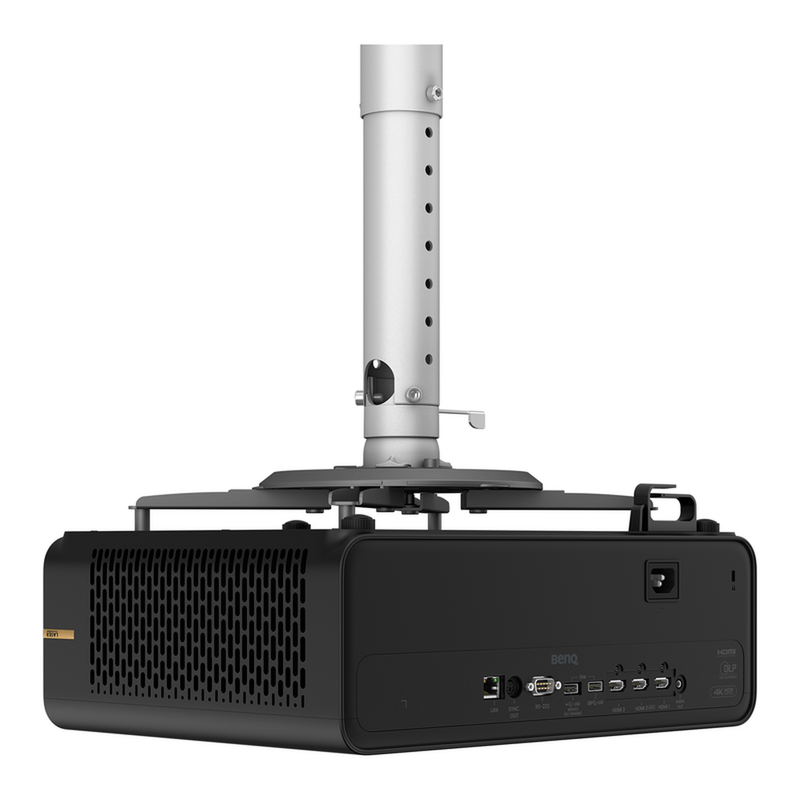

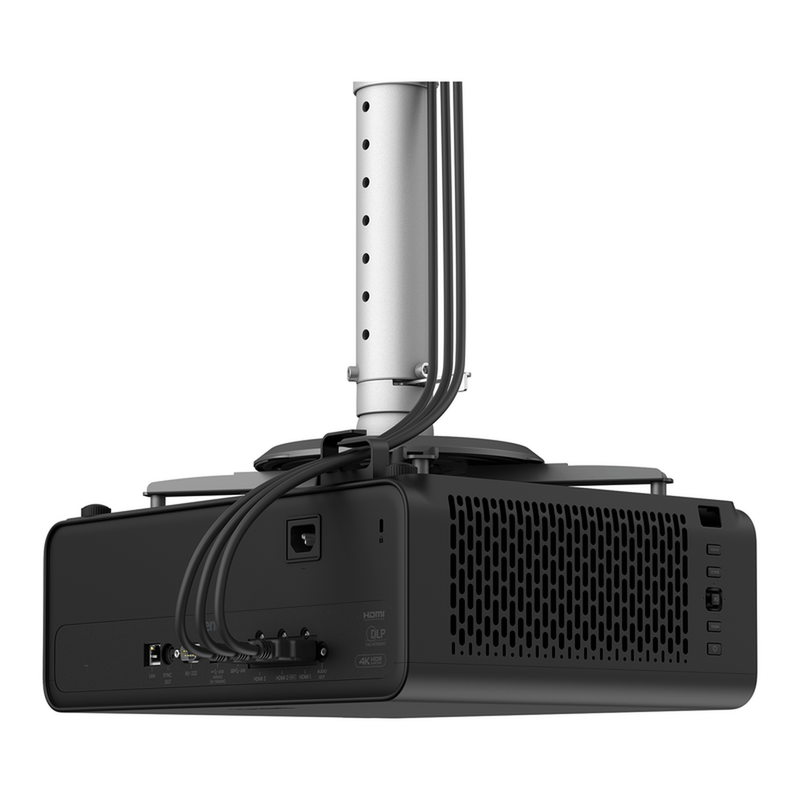

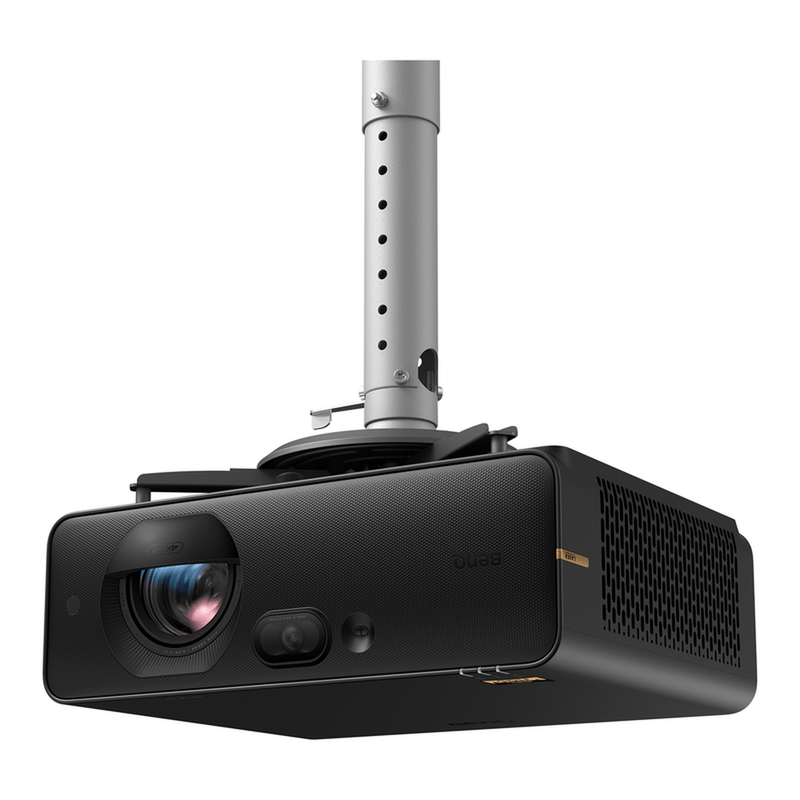

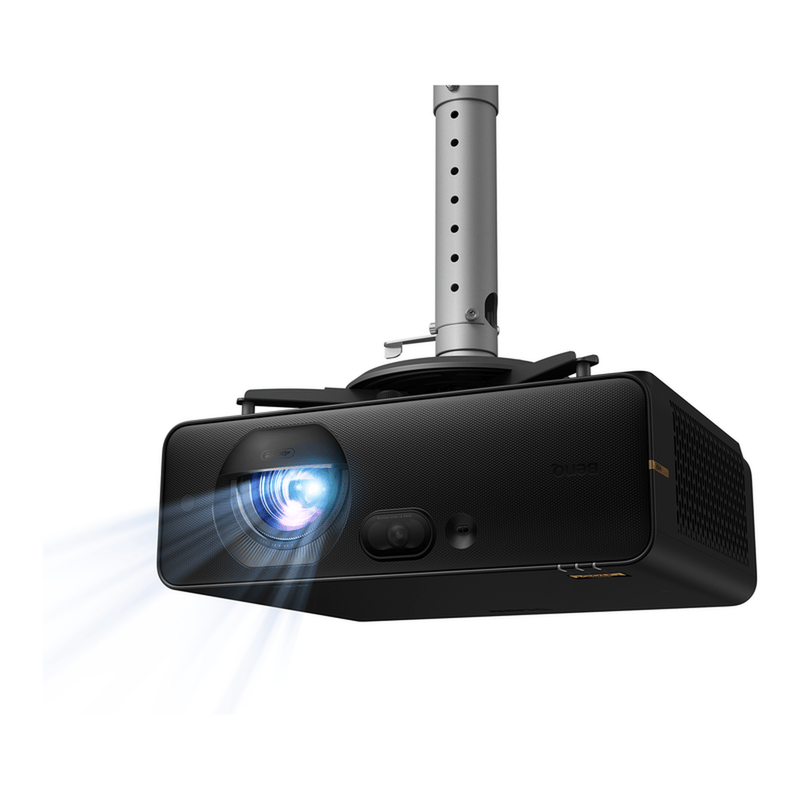

Q: Which ceiling mount is compatible with this projector?
A: The BenQ CM00G3 Universal Ceiling Mount is listed as an optional mounting accessory for the AK800ST.
