Description
What's Included:
- Thin Articulating Mount
- Integrated Leveling Tool
- Decorative Cover Panels
- Installation Instructions and Setup Guide
Product Features
Slim Low-Profile Design

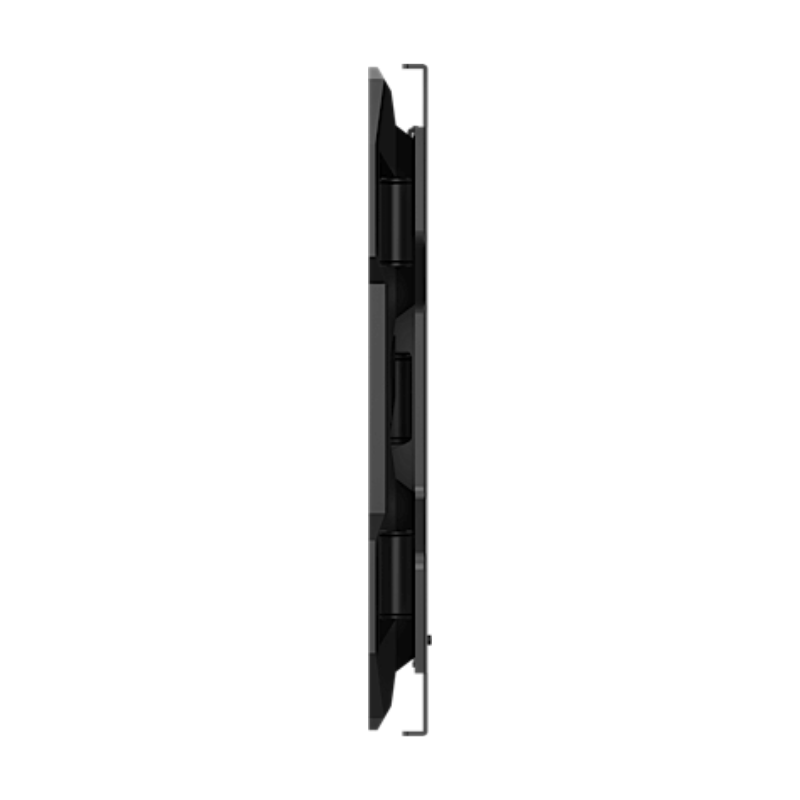

Keeps your display just 1.09 inches from the wall when fully retracted, creating a clean, modern appearance without unnecessary bulk.
Extended Viewing Flexibility

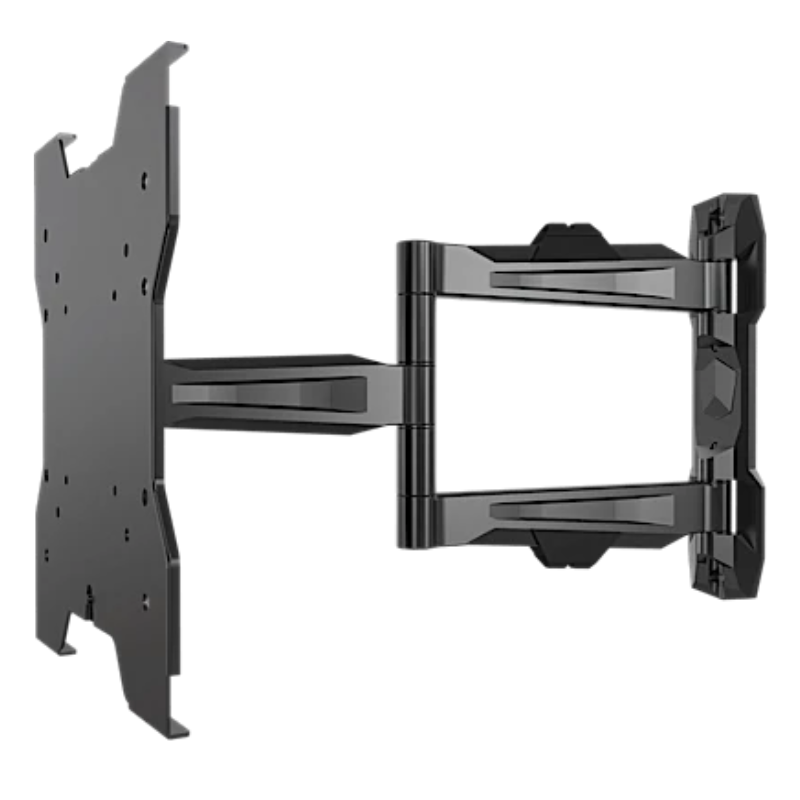

Provides up to 20 inches of extension from the wall, making it easy to position your screen for the best viewing angle.
Smooth Tilt and Roll Adjustments
Features +15° forward tilt and 3° of side-to-side roll, allowing for precise screen positioning and improved viewing comfort.
Stable Multi-Point Installation
Utilizes three wall attachment points to enhance strength and stability, with support for mounting to wood studs or concrete surfaces.

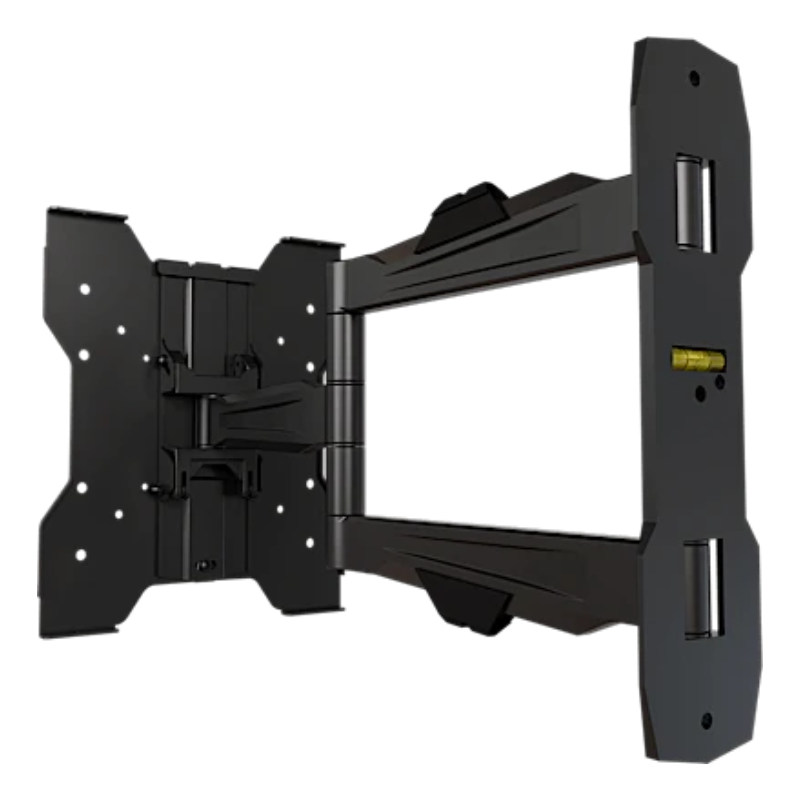

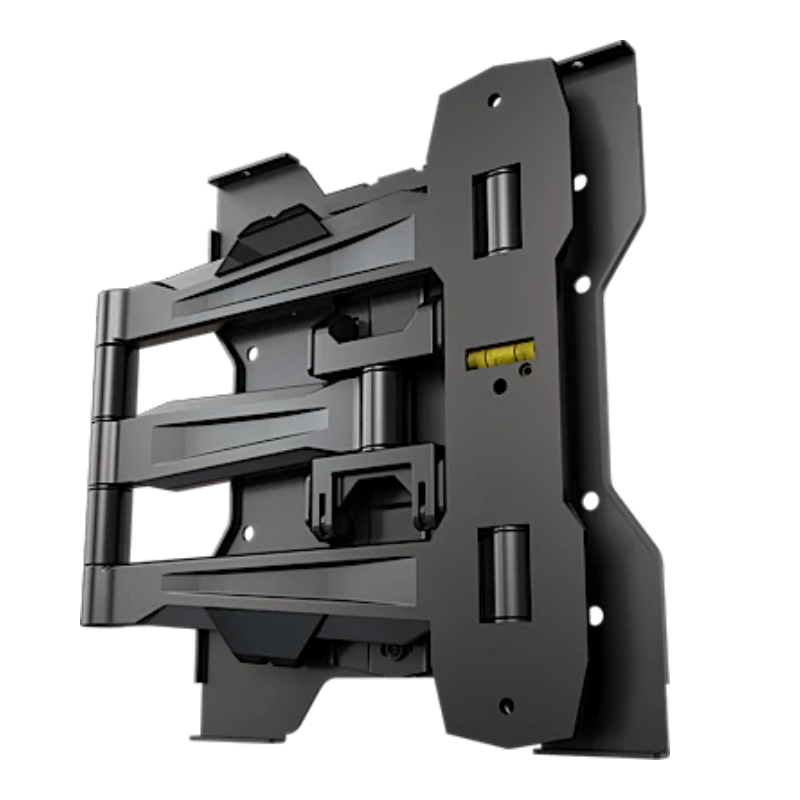

Integrated Level and Decorative Covers
A built-in leveling system simplifies installation, while included cover pieces conceal mounting hardware for a refined, finished appearance.
Concealed Cable Management
Helps organize and hide cables to maintain a neat, professional-looking setup.
Tool-Free Fine-Tuning

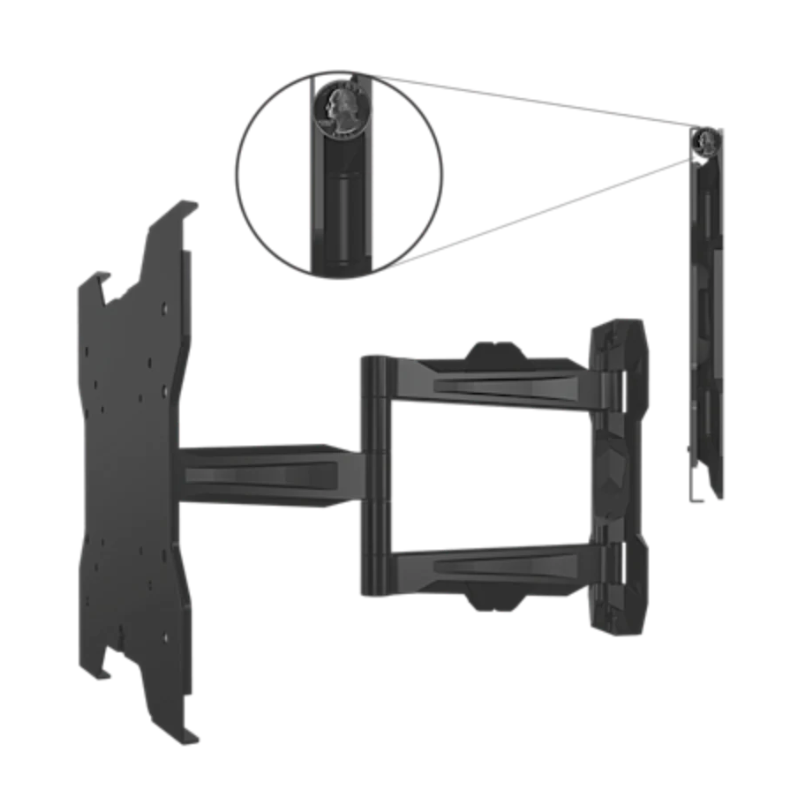

Enables minor post-installation leveling adjustments without additional tools, making it easy to achieve perfect screen alignment.
What's Included
Included with Your Purchase:
- Thin Articulating Mount
- Integrated Leveling Tool
- Decorative Cover Panels
- Installation Instructions and Setup Guide
Specifications
-
Compatible Screen Size: 13" to 46" displays
-
Maximum Weight Capacity: 80 lbs (36 kg)
-
Product Weight: 10 lbs (4.5 kg)
-
Package Dimensions: 18" W × 16" H × 3" D
-
Maximum Mounting Pattern: 200 × 200 mm
-

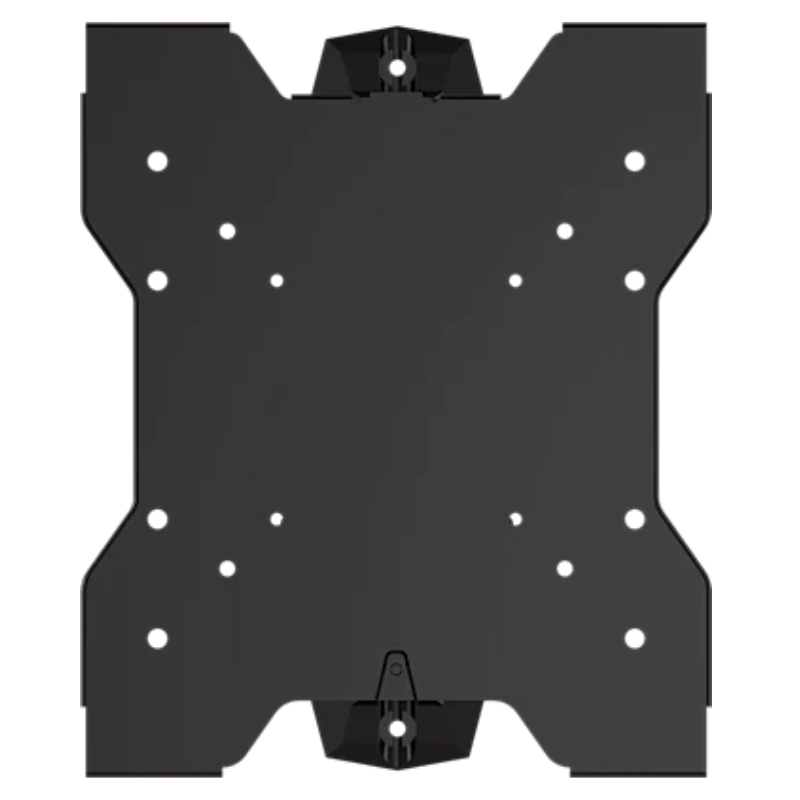

Supported VESA Patterns: 100 × 100 mm, 200 × 100 mm, 200 × 200 mm
-
Distance from Wall (Retracted): 1.09" (27.8 mm)
-
Maximum Extension: 20" (508 mm)
-
Tilt Adjustment: +15° forward / -5° backward
-
Pivot Range: 180°
-
Roll Adjustment: 3° side-to-side leveling
-
Compatible Mounting Surfaces: Wood stud, concrete, and cinder block walls
-
Stud Requirement: Single-stud installation
-
Construction Material: Aluminum and high-grade cold-rolled steel
-
Finish: Scratch-resistant epoxy powder coating
-
Color: Black
-
Model Number: AU42
-
Warranty: 10-Year Limited Warranty
-
Certification: UL Listed for safety and performance standards
FAQ
Q: Is this mount compatible with my TV?
A: This mount is designed for most 13" to 46" flat panel displays that support VESA patterns of 100 × 100 mm, 200 × 100 mm, or 200 × 200 mm. Checking your display's VESA specifications is recommended to ensure compatibility.
Q: Can the mount be installed on concrete walls?
A: Yes. The mount supports installation on wood studs, concrete, and cinder block surfaces, providing flexibility for a variety of mounting applications.
Q: Is installation difficult?
A: No. Features such as the integrated level, post-installation adjustment capability, and secure locking design help simplify the installation process and allow for precise screen alignment.
Q: Does the mount include cable management?
A: Yes. An integrated cable management system helps conceal and organize wires for a cleaner, more professional-looking setup.
