Description

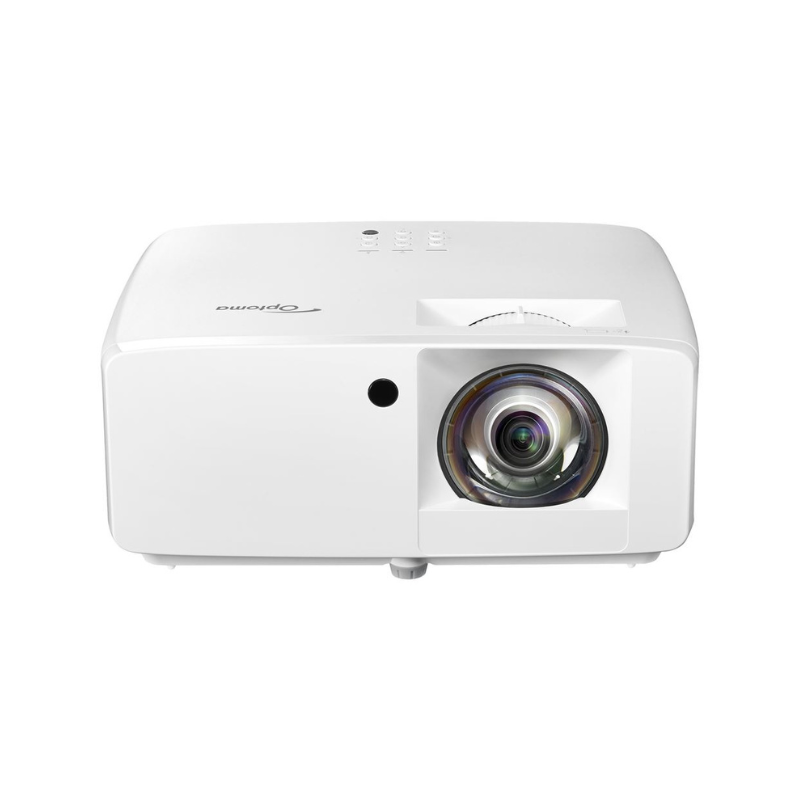

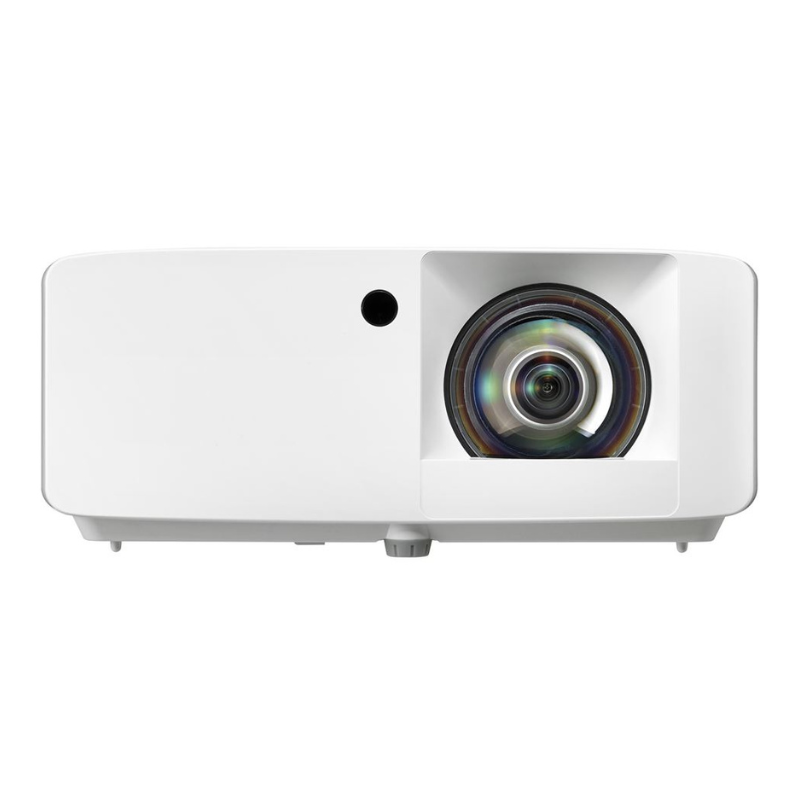

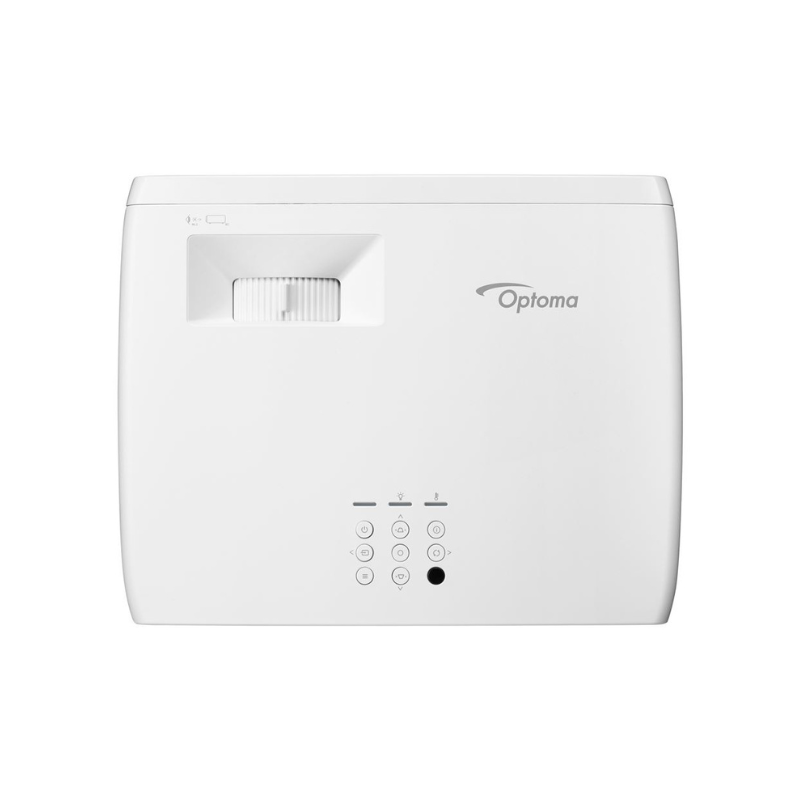

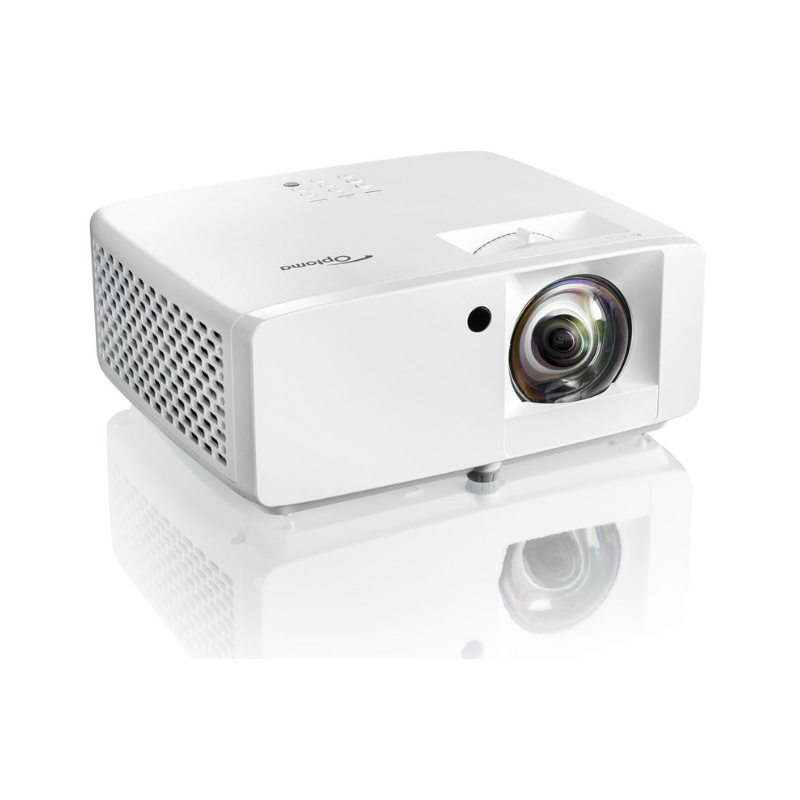

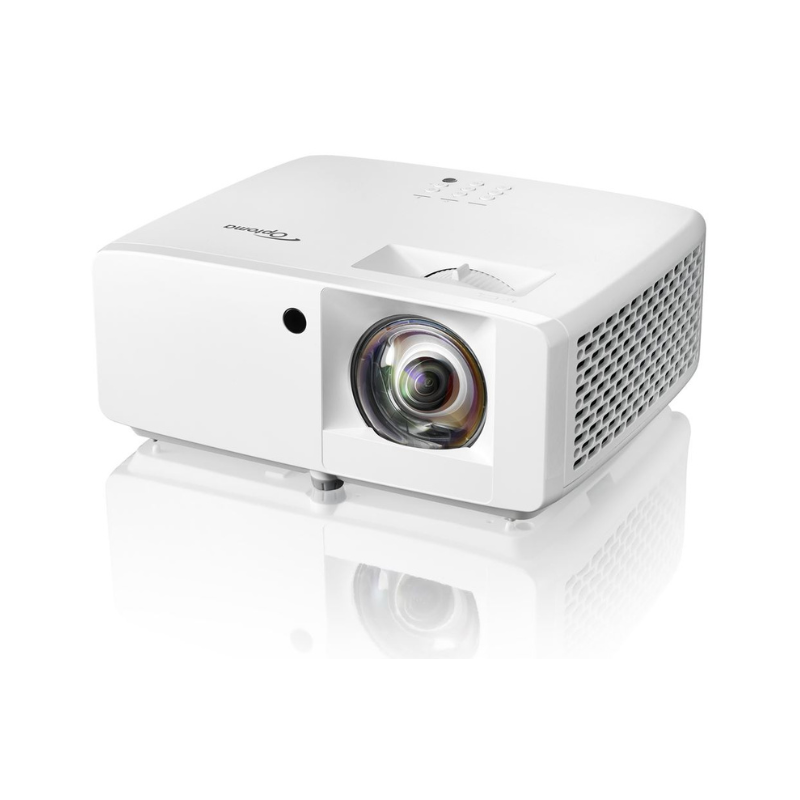

The Optoma ZW350ST is a compact short-throw laser projector built for versatile spaces such as golf simulators, home theaters, and small meeting rooms. With 3,600 ANSI lumens and WXGA resolution, it produces bright, sharp visuals even in well-lit environments. Its long-lasting DuraCore laser light source provides up to 30,000 hours of virtually maintenance-free operation, eliminating the need for frequent lamp replacements.
Designed for flexibility, the projector supports 360° and portrait projection, features an external power supply for added reliability, and offers a wide range of connectivity options. Eco-conscious elements include up to 45% energy savings, IP6X-rated dust-resistant optics, and fully recyclable packaging.
Features
Ultra-Bright WXGA DuraCore Laser
Experience 3,600 ANSI lumens of vivid projection with an IP6X-rated dust-proof design for dependable performance in any environment.
Space-Saving Short-Throw DesignWith a 0.521:1 throw ratio, it projects a large, immersive image from less than a meter away—ideal for golf simulators and compact setups.
Long-Lasting, Maintenance-Free LaserThe DuraCore laser engine provides up to 30,000 hours of operation without the need for lamp replacements or routine maintenance.
Versatile Connectivity & ControlEquipped with dual HDMI (3D-ready), USB-A, RS-232, and RJ-45 ports, and compatible with AMX, Crestron, Extron, and Optoma OMS control systems for seamless integration.
Specifications
Display Performance:
- Display Technology: DLP®
- Resolution: WXGA (1280x800)
- Brightness: 3,600 lumens
- Contrast Ratio: 300,000:1
- Dynamic Contrast Ratio: 2,000,000:1
- Native Aspect Ratio: 16:10
- Compatible Aspect Ratios: 4:3,16:9
- Keystone Correction Horizontal: +/-15°
- Keystone Correction Vertical: +/-15°
- Displayable Colors (Millions): 1073.4
- Horizontal Scan Rate: 15 ~ 140Khz
- Vertical Scan Rate: 24 ~ 120Hz
- Uniformity: 75%
- Screen Size: 30" ~ 300" diagonal
Light Source:
- Light Source Type: Laser
- LASER Life: 30,000 hours
Projection Optics:
- Throw Ratio: 0.521:1
- Projection Distance: 11.81" - 133.86"
- Zoom Type: Fixed
- Focal Length (mm): 7.51
- Native Offset: 115%

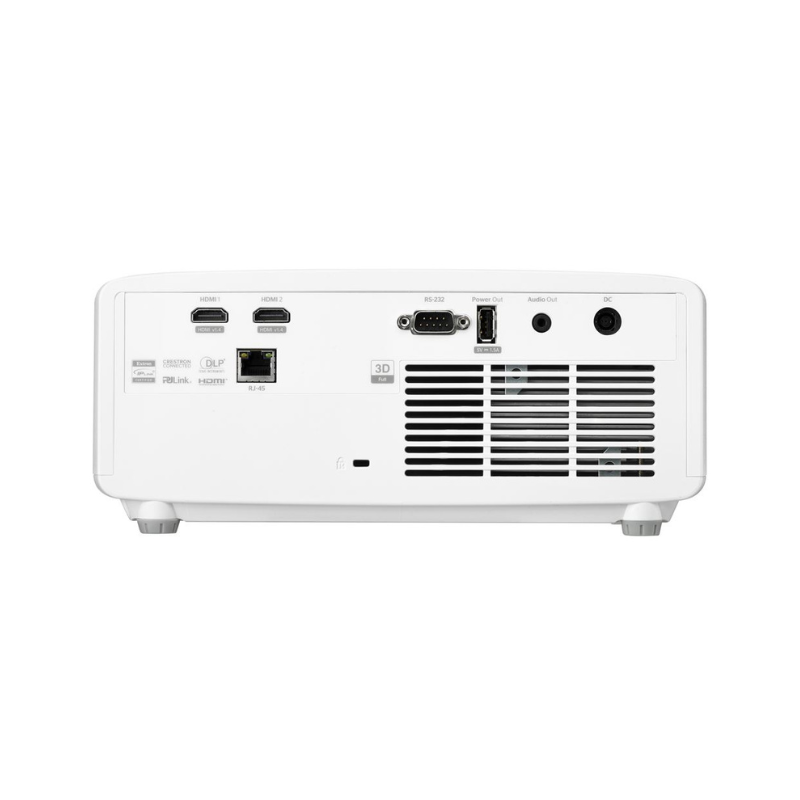

Connectivity:
- Inputs: 2 x HDMI 1.4a 3D support
- Outputs: 1 x Audio 3.5mm, 1 x USB-A power 1.5A
- Control: 1 x RS232, 1 x RJ45
General:
- Noise Level (Min): 27dB
- Noise Level (Max): 34dB
- PC Compatibility: FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
- 2D Compatibility: NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
- 3D Compatibility: Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D) 720p50 / 60
- 3D: Full 3D
- Security: Security bar, Kensington Lock, Password protected interface
- IP Rating: IP6X
- OSD / Display Languages: 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
- 24/7 Operation: Yes
- 360° Operation: Yes
- Operating Conditions: 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m

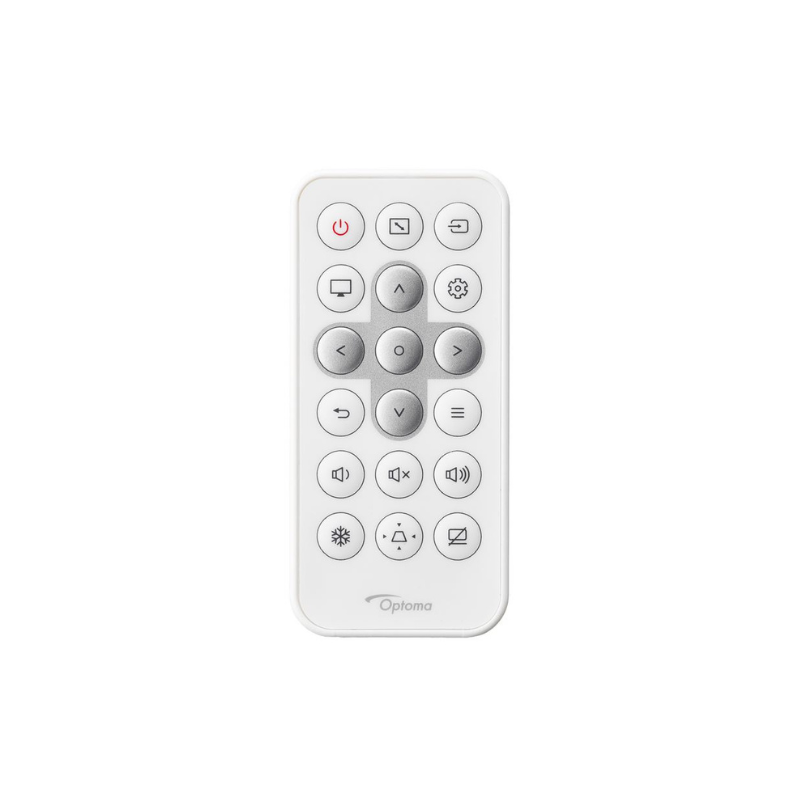

- Remote Control: Card style
- Speaker Count: 1
- Watts per Speaker: 15W
- In the Box: AC power cord, Remote control, 1x CR2025 battery, Basic user manual
- Optional Wireless Models: UHDCast Pro
Power:
- Power Supply: External power supply, 100V ~ 240V, 50-60Hz
- Power Consumption (Standby): <0.5W
- Power Consumption (Min): 98W
- Power Consumption (Max): 139W
Weight and Dimensions:
- Dimensions (W x D x H): 10.79" x 8.5" x 4.49"
- Gross Weight: 9.26 lbs
- Net Weight: 6.61 lbs
What's Included
- Optoma ZW350ST WXGA 3600-Lumens Short Throw Golf Simulator Projector
- AC Power Cord
- Card‑Style Remote Control (Battery Included)
- Basic User Manual
- Optional UHDCast Pro Wireless Dongle
View and Download
Frequently Asked Question
How long does the laser light source last?
- The projector features a long-lasting laser light source that provides up to 30,000 hours of virtually maintenance-free operation—no lamp replacements required.
Can this projector be ceiling-mounted upside down?
- Yes. It supports full 360° mounting, including portrait orientation, with built-in keystone correction for flexible installation.
Does it support remote management?

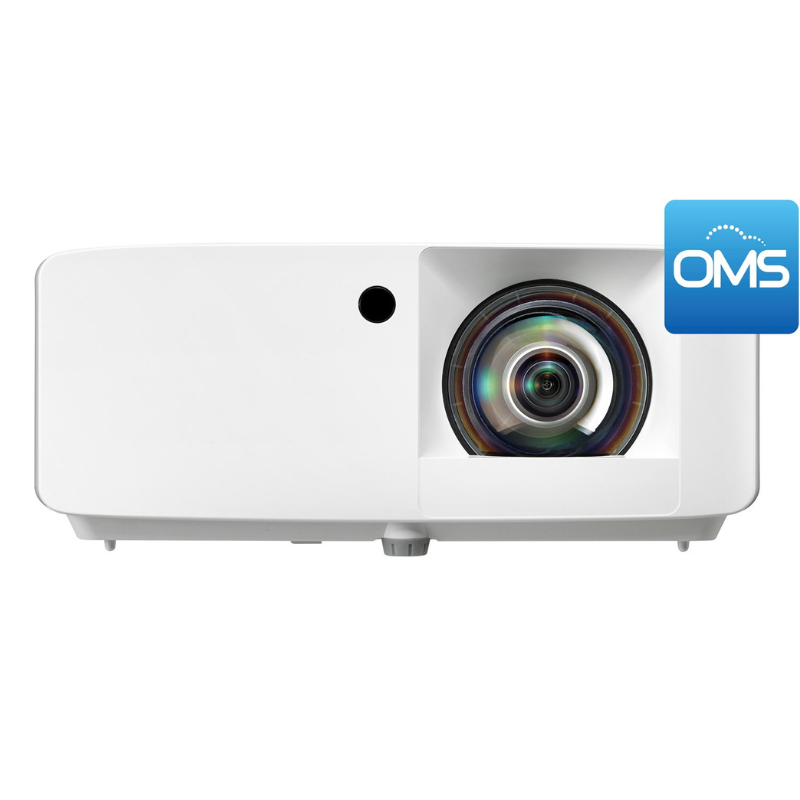

- Yes. It is fully compatible with Optoma OMS, AMX, Crestron RoomView, and Extron IPLink, allowing for convenient centralized control.
Is it suitable for golf simulators? What throw distance is needed for a 100" image?
- Perfect for golf simulators. The 0.521:1 short-throw lens projects a 100” diagonal image from approximately 1 meter away.
What connectivity options are available?
- Connectivity includes dual HDMI (3D capable), USB‑A power, 3.5 mm audio output, RS‑232, and LAN for seamless integration with various AV setups.
