Description

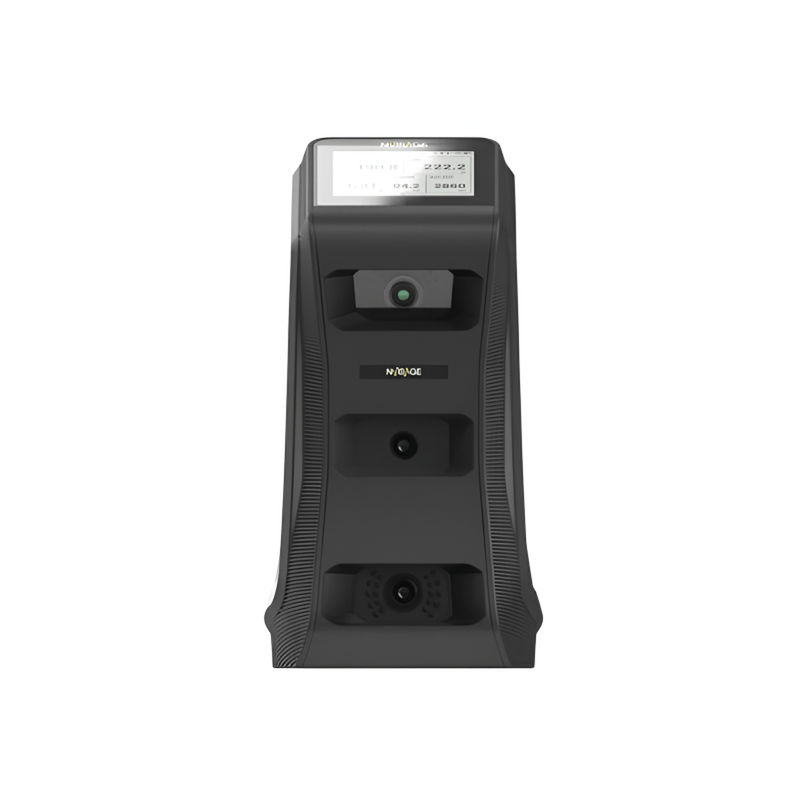

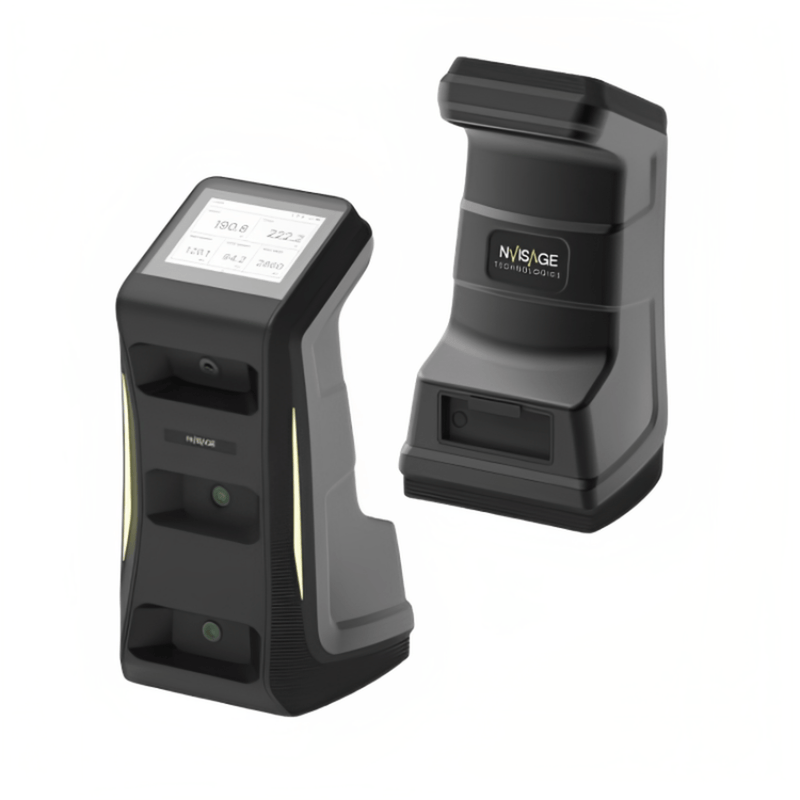

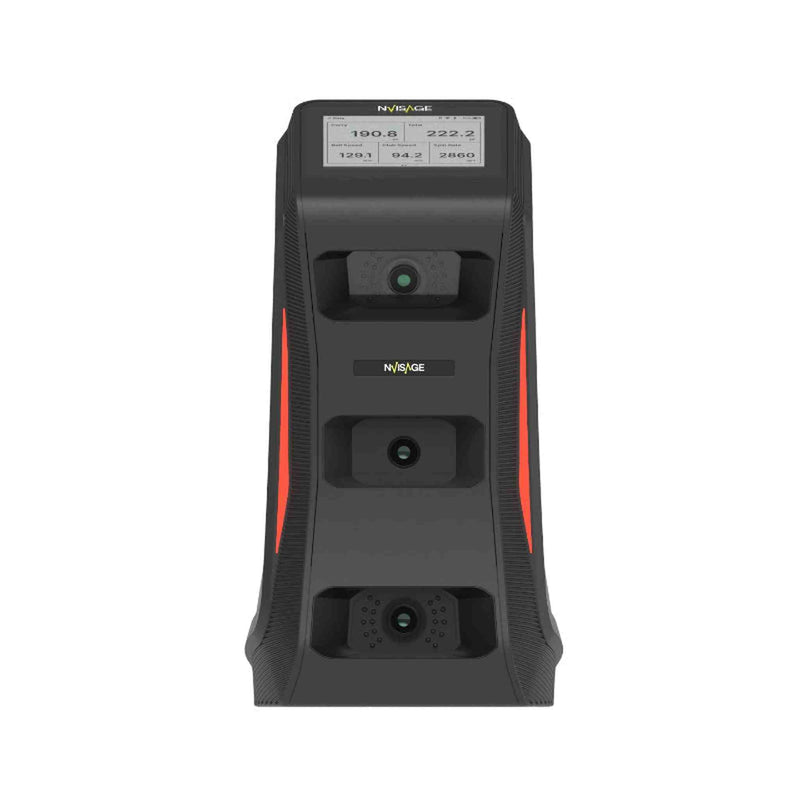

The NVISAGE NEO-E Launch Monitor is a sleek, portable golf tracking system designed to deliver precise performance data wherever you play—indoors or outdoors. Built for golfers who value both accuracy and convenience, the NEO-E combines advanced analytics with a compact, travel-ready form factor.
With three high-resolution cameras, it records ball speed, spin, launch angles, and in-depth club metrics with exceptional accuracy. Dual connectivity options (Wi-Fi and wired LAN) ensure fast, stable integration with your preferred software, while the 4.3" touchscreen provides an intuitive interface. The device works with all club types, doesn’t require marked balls, and includes optional stickers for more advanced club analysis. Rated IP65 for dust and water resistance and equipped with a 5-hour battery, the NEO-E is built to perform in almost any setting.
Included in the Box:
Product Features
Lightweight, Portable Build
At just 6.2 lbs, the NEO-E is easy to carry and perfect for training at home, on the driving range, or while traveling.
Comprehensive Data Tracking
Delivers advanced ball, club, and flight metrics including spin rate, launch angle, club path, and impact location for a complete performance overview.
Built for Any EnvironmentEngineered with IP65 water and dust resistance for consistent use indoors or outdoors.
Integrated Touchscreen DisplayThe 4.3" LCD offers crisp visuals, quick setup, and real-time feedback with a simple, user-friendly interface.
Extended Battery LifeProvides up to 5 hours of operation, keeping you powered for long practice sessions without interruption.
Seamless Connectivity
Supports both Wi-Fi and wired Ethernet (LAN), working smoothly with MURLIE and third-party platforms such as E6 Connect and GSPro.
Wide Hitting Zone
Measures 12.6" x 9.4" with a 14.2" data collection range for consistent, reliable shot tracking.
Enhanced Club Data
Optional stickers provide additional metrics like impact location, face angle, smash factor, and more.
What's Included
Included with Your Purchase:
What's Measured
Ball Data:
-
Ball Speed
-
Total Spin
-
Back Spin
-
Side Spin
-
Spin Axis
-
Launch Angle
-
Launch Direction
Club Data:
-
Club Speed
-
Club Path
-
Attack Angle
-
Face Angle
-
Dynamic Loft
-
Smash Factor
-
Face to Path
-
Impact Point
Flight Data:
-
Carry Distance
-
Total Distance
-
Run
-
Side Total
-
Distance to Apex
-
Apex
-
Descent Angle
-
Ball Flight Type
-
Flight Time
-
Curve
Specifications
-
Dimensions: 6.3"W x 12.1"H x 5.8"D
-
Weight: 6.2 lb (2.7 kg)
-
Use: Indoor & Outdoor
-
Battery: Up to 5 Hours
-
Connectivity: Bluetooth & Wired Ethernet (LAN)
-
Display: 4.3" LCD (320 x 240 pixels)
-
Resistance: IP65 Rated (Water/Dust)
-
Operating Temp: 14°F to 113°F
-
Strike Zone: 12.6"W x 9.4"D
-
Data Collection Distance: 14.2"
-
Ball Compatibility: Any Ball Type
-
Cameras: 3
-
Target Alignment: Included
Requirements
PC Requirements
-
OS: Windows 10/11 (64-bit only)
-
CPU: Intel i5 8400 minimum / Intel i7 10th Gen recommended
-
RAM: 8 GB minimum / 16 GB recommended
-
GPU: GeForce GTX 1060 minimum / RTX 30 Series recommended
-
Storage: 50 GB minimum
FAQ
Q: Can I use the NEO-E outside?
A: Yes, it’s IP65 rated for dust and water protection and works in most outdoor conditions.
Q: Do I need special golf balls?
A: No, it supports any ball type—no logos or markings required.
Q: Is the club sticker required?
A: Stickers are optional, but they unlock additional club insights such as face angle and strike point.
Q: What performance data is captured?
A: Ball and club speed, spin rates, launch angle, carry distance, and many more metrics.
Q: Is it PC compatible?
A: Yes, with Windows 10 or 11 (64-bit). It is not compatible with Mac or Linux.
Q: What software works with it?
A: It integrates with MURLIE and is compatible with popular options like E6 Connect and GSPro.
