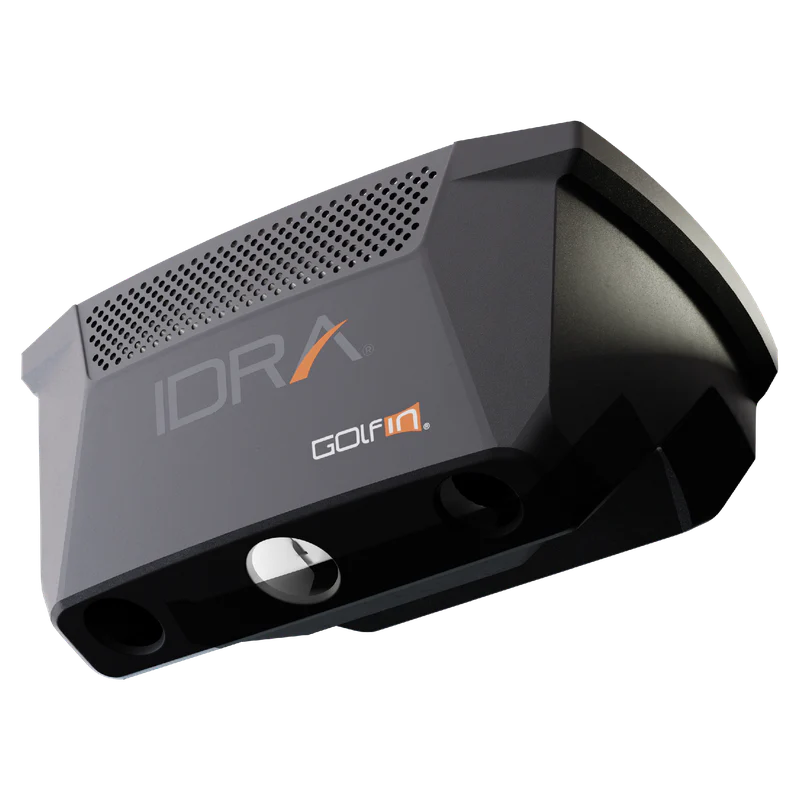

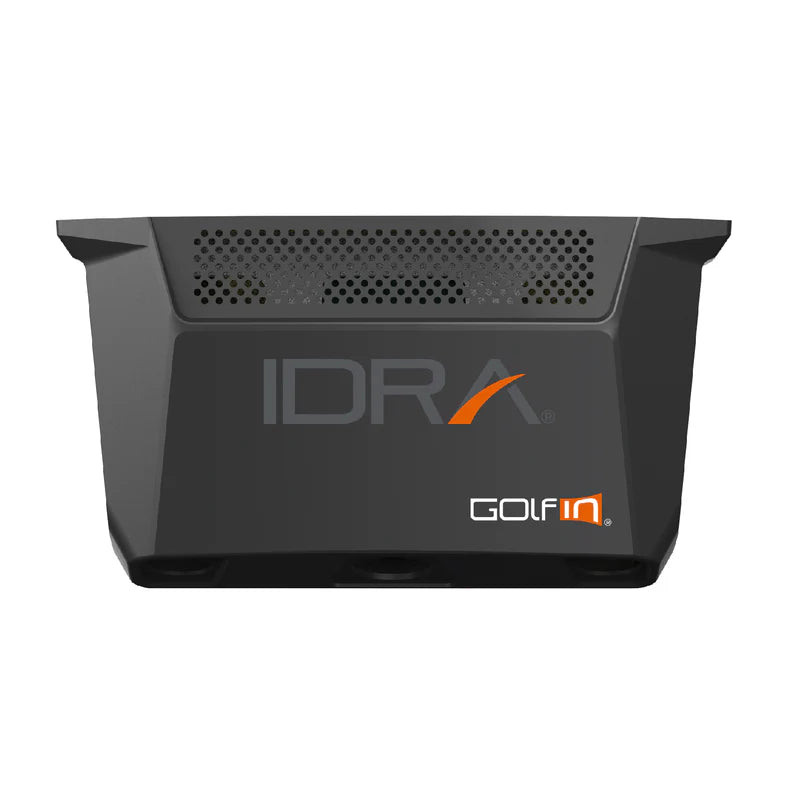

GolfIn IDRA II Launch Monitor

What's Included

Included with Your Purchase:

• (1) IDRA II Camera
• (1) Calibration Board
• (1) IDRA II Ceiling Mount
• (1) Wireless Remote Control Outlet (Available only in North America)
• (4) 1/2" Drywall Plastic Toggle Anchors
• (4) 1" Head Phillips/Square Drive Screws
• (4) 3" Head Phillips/Square Drive Screws
• 2 Years Warranty

What's Measured

Club Data:

• Club Face to Target – Measures the angle of the clubface relative to the target at impact.
• Club Face to Path – Tracks the relationship between the clubface and the swing path.
• Club Face Vertical Impact – Captures the vertical position of the clubface at the point of contact.
• Club Speed – Monitors the speed of the clubhead as it strikes the ball.
• Club Path – Analyzes the direction and trajectory of the club's swing path.
• Smash Factor – Calculates energy transfer efficiency from the club to the ball.

Ball Flight Data:

• Carry (Game) – Distance the ball travels through the air with game adjustments.
• Carry (Raw) – Actual carry distance without any adjustments.
• Total Distance – Combined carry and roll distance of the shot.
• Ball Direction – The ball's direction relative to the target line.
• Ball Deviation – Measures the amount of curve or deviation from a straight path.
• Ball Speed – Speed of the ball immediately after impact.
• Launch Angle – Initial angle of ascent relative to the ground.
• Peak Height – Maximum height reached by the ball during flight.
• Descent Angle – Angle at which the ball descends towards the ground.
• Side Spin – Spin that causes the ball to curve left or right.
• Back Spin – Spin that affects height and distance by creating lift.
• Spin Axis – The tilt of the spin axis, influencing ball curvature.

Specifications

Hitting Zone Specifications: 32”W x 18”D

IDRA II Unit Dimensions: 7 1/4" H x 13 5/16" W x 9 5/8" D

Weight: 14.4 lbs

Requirements

Space Requirements:

• Camera Height to Turf: 8'3" - 10'
• PC Position: Must be placed within 25 feet of the IDRA II unit.
• Ball to IDRA II Distance: 4'3-1/8" - 5'1-1/2"
  (Measured from the back of the mounting plate to the ball position)

PC Requirements:
To run the simulation software, your computer should meet the following specifications:

PC Requirements for GSPro:

• Minimum Processor: Intel i7 10th gen with 16 logical processors
• Recommended Processor: Intel i7 10th gen with 24 logical processors
• Storage: Minimum 512 GB, Recommended 1 TB
• GPU: Nvidia GeForce RTX 20 series (Minimum), RTX 40 series (Recommended)
• RAM: 16 GB
• USB Ports: 2 USB 3.0 ports required
• Internet: High-speed internet required

PC Requirements for E6 Connect:

• Processor: Intel i7 10th gen with 16 logical processors
• Storage: Minimum 512 GB
• GPU: Nvidia GeForce RTX 20 series (Minimum), RTX 40 series (Recommended)
• RAM: 16 GB
• USB Ports: 2 USB 3.0 ports required
• Internet: High-speed internet required
• Note: AMD processors are not supported for GSPro and E6 Connect.

Product Resources

Documents Included:

• IDRA II Brochure
• IDRA II Installation Guide
• IDRA II Technical Guide
