The NVISAGE N1 DIY Golf Simulator Package is the ultimate solution for customizability and optionality in an overhead golf simulator package. The package includes the NVISAGE N1 Launch Monitor, Carl's Place DIY Golf Simulator Enclosure Kit with Premium Impact Screen in your preferred size, and choice of hitting mat and projector.
What's Included:
NVISAGE N1 Launch Monitor
Carl's Place DIY Golf Simulator Enclosure Kit with Premium Impact Screen
Hitting Mat
Projector
Optional Accessories (Not Included):
Pipe Framing Kit for DIY Golf Simulator Enclosure (Recommended)
Safety Baffle (Recommended)
Foam Insert Kit (Recommended)
Back Cover Kit for DIY Golf Simulator Enclosure
Back Cover Pipe Kit for DIY Golf Simulator Enclosure
Net Wall Extensions for Golf Simulator Enclosure
Big Moss Golf Simulator Putting Turf
Projector Mount
Gaming PC or Laptop
Before purchasing, please view the Specifications tab to confirm that the Overall Enclosure Dimensions for the Size you have selected will be suitable for your space.
What's Included

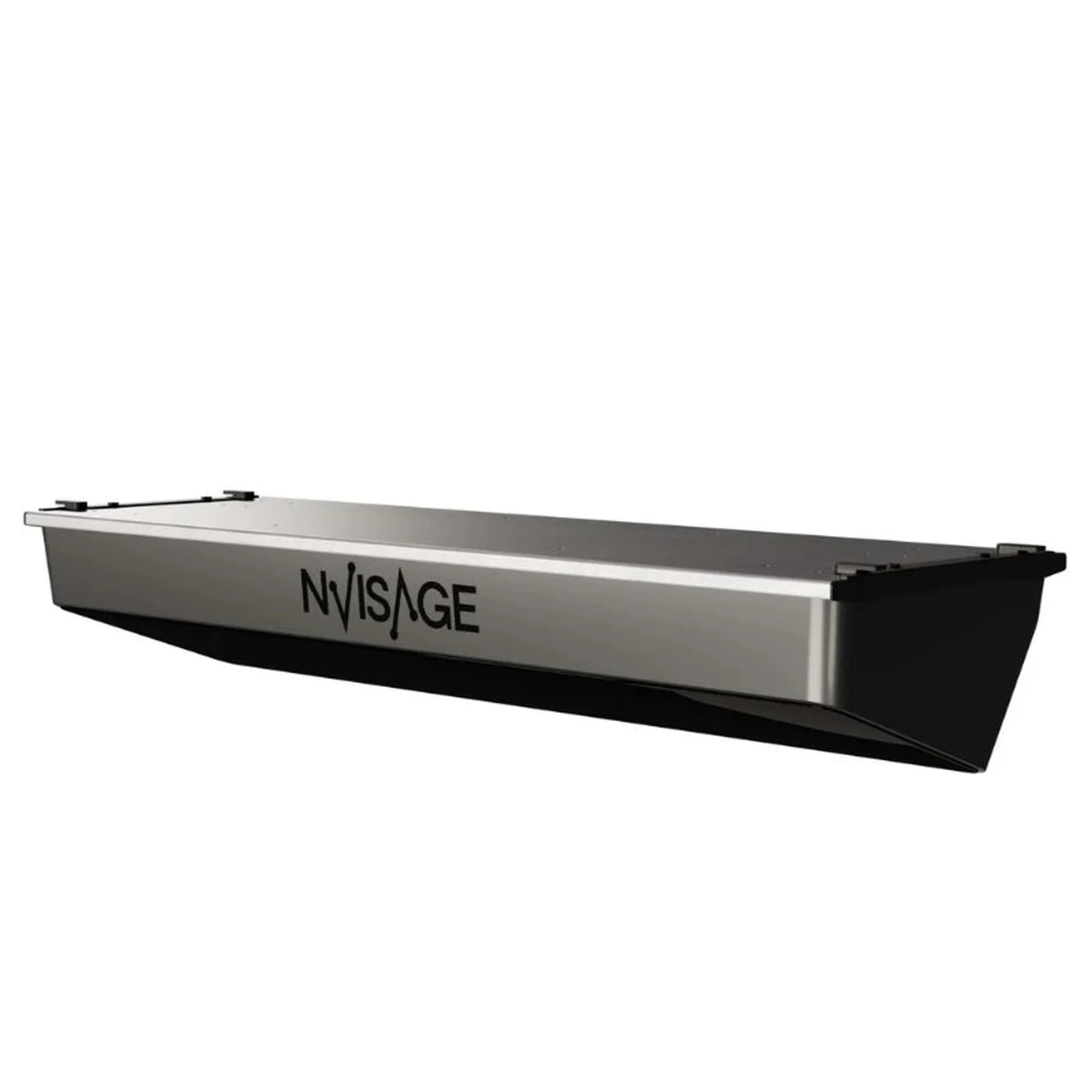

NVISAGE N1 Launch Monitor The NVISAGE N1 Launch Monitor is a budget friendly, highly-precise, overhead launch monitor that is packed with features. The NVISAGE N1 works seamlessly with third-party golf simulator software such as GSPro and E6 Connect.
Specially crafted balls exclusively for the NVISAGE N1 ensure precise accuracy, while high-speed cameras and an advanced PhysX 6D Physics Engine flawlessly capture the nuances of your swing, allowing you to confidently analyze your game. A generous 24-inch-deep-by-20-inch-wide hitting area provides golfers with ample space for teeing up the ball and allows for a seamless user experience for left and right-handed players.
Carl's Place C-Series DIY Golf Simulator Enclosure Kit with Premium Impact Screen Offering a seamless, turf-to-screen experience with a borderless bottom, the Carl's Place C-Series DIY Golf Simulator Enclosure Kit with Premium Impact Screen enables you to be fully immersed in your practice sessions. Choose from 6 sizes for maximum customization and to turn virtually any space into a golf simulator studio.
The Black Nylon Enclosure, Steel Corner Fittings, and Ball Bungees with Zip Ties are included with your DIY Enclosure Kit. Add the Carl's Place Pipe Framing Kit, Safety Baffles, Foam Insert Kit, Back Cover Kit, Back Cover Pipe Kit, and Net Wall Extensions to allow for a streamlined assembly process and for an added layer of customization.
Carl's Place HotShot Golf Hitting Mat Choose from the Carl's Place 5'x7' or 4'x9' HotShot Golf Hitting Mat to complete your simulator package. The 5'x7' HotShot is best suited for single player use of the same hitting stance, while the 4'x9' HotShot can accommodate both left and right-handed players with ease.
Engineered to be joint-friendly and anti-fatigue, the HotShot Hitting Mat enables you to enjoy hours of play without discomfort. The pre-cut, replaceable hitting area allows for swift replacement after you have worn out this section on your mat.
Choice of BenQ Lamp or Laser-Based 4K Projector Choose from the BenQ TK700STi (lamb-based 4K) or LK936ST (laser-based 4K) Projector depending on your budget. The TK700STi offers 3,000 lumens with an impressive lamp life of up to 15,000 hours and a versatile throw ratio ranging from 0.9~1.08.
Upgrade to the LK936ST to experience the pinnacle of golf simulation graphics. Boasting 5,100 lumens and engineered exclusively for premium golf simulation configurations, the LK936ST ensures you can analyze every contour and blade of grass in stunning, full HD resolution.
NVISAGE Features
Overhead Launch Monitor Design The NVISAGE N1 is designed to be mounted overhead, which allows you to keep the launch monitor out of your swing's path. This setup maximizes space, allowing uninterrupted practice to enhance your skills. Utilize the NVISAGE Frame Mount to seamlessly mount the device directly onto any Carl's Place Pro Enclosure.
Capture Every Move with High Speed Cameras Unveil the intricacies of your swing with the NVISAGE N1's cutting-edge sensors. Equipped with high-speed cameras and an advanced PhysX 6D Physics Engine, this launch monitor flawlessly captures the nuances of your swing, elevating your golfing experience.
Spacious Hitting Zone Featuring a 24-inch-deep-by-20-inch-wide hitting area, the NVISAGE N1 provides golfers with ample space for teeing up the ball. This not only enhances ease of use but also offers mounting flexibility in tighter spaces.
Instant Performance Insights Efficiency is key with real-time feedback. The NVISAGE N1's multi-camera setup ensures precision by capturing detailed swing data from multiple angles, offering a comprehensive analysis of your performance.
Seamless Third-Party Integration One of the standout features of the NVISAGE N1 is its compatibility with third-party golf analysis and simulation software. Whether you prefer GSPro or E6 Connect, you have the freedom to choose and use the software that suits you best. Dive into the data and insights that matter most without being tied to any proprietary launch monitor software.
What's Measured
The dual 2,000 FPS cameras track the ball's rotation and trajectory, providing an immersive and lifelike pitching experience through the advanced PhysX 6D Physics Engine. To optimize accuracy, the NVISAGE N1 requires marked balls featuring a specially designed dot pattern.
Data Parameters (using marked balls):
Club Speed
Ball Speed
Launch Angle
Spin Axis
Horizontal Launch Angle
Back Spin
Side Spin
Total Spin*
*Calculated
Software Options: The NVISAGE N1 requires golf simulator software and is compatible with:
GSPro: Immerse yourself in one of the most realistic golf simulators on the planet. GSPro Golf Simulator Software boasts incredible 4K graphics, true-to-life ball flight and roll, and a vibrant community. Practice shots on downloadable courses, compete in skills tests, or play matches locally and online on a selection of over 300 courses.
E6 Connect: Utilize E6 with launch monitors for teaching, training on the driving range, participating in leagues and online events at commercial facilities, or enjoying casual games at home with friends and family.
Requirements
PC Requirements: Third-party software dictates the minimum PC requirements. We advise checking the recommended specifications for your chosen software.
Intel i5 8400 (Not compatible with Apple iOS or Mac OS)
8 GB RAM
GeForce GTX 1060 (For AMD: 3rd gen Ryzen or higher, AMD Ryzen 3600X or higher, AMD 2700 not compatible)
Windows 10 (64 bit) Version 1803 or higher
Ethernet Port Mandatory
*RTX Graphics card is highly recommended while using a 4K projector.
Space Requirements: Install the NVISAGE N1 at a height of 9-10 feet above your hitting surface and position it 2 feet in front of the hitting area. Following our suggestion to hit from a minimum distance of 10 feet from your impact screen, this situates the NVISAGE N1 approximately 8 feet away from the impact screen.
Specifications
NVISAGE N1 Specifications:
Dimensions: 21.8"L x 6.9"W x 4.9"H
Weight: 19.2 lbs
Mounting Location: Overhead
Mounting Position: 9-10ft overhead, 2ft in front of tee
Hitting Zone: 24” x 20”
Cameras: (2) 2,000 FPS cameras
Compatibility: GSPro, E6 CONNECT (more to come)
Carl's Place C-Series DIY Enclosure Specifications:
Depths:Available in 5' standard depth. The enclosure frame's footprint extends ~1 ft behind the screen.
EMT Requirements: Unless you have purchased the Pipe Framing Kit accessory, you will need to purchase 1-inch EMT (electrical metal tubing) from your local hardware store to complete your frame. Please note, 1-inch EMT is the US trade name of the material, however the true outer diameter is 1.163" or 27mm.
