Description
The BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector is a high-performance, user-friendly solution designed to enhance your indoor golf simulation experience.
BenQ’s Screen Fill technology ensures seamless adjustments to various screen sizes and aspect ratios, providing a perfect fit every time. Specialized Golf Mode enhances color accuracy, rendering lifelike greens, fairways, and course terrain for an immersive simulation.
With a dustproof sealed engine and a durable laser light source, the AH500ST delivers 4000 lumens of brightness and a 3,000,000:1 contrast ratio, producing sharp, vivid visuals in any lighting condition. Its low-maintenance, long-lasting laser technology allows you to focus on your performance without worrying about upkeep.
Product Features
Automatic Screen Adjustment
The AH500ST automatically detects and adjusts to your impact screen's aspect ratio, supporting 16:9, 16:10, 4:3, and 1:1 formats to ensure optimal resolution for your simulation setup.
Quick Focus
Easily fine-tune image sharpness using the remote control’s Focus button, ensuring precise and crystal-clear visuals with minimal effort.
Wireless Projection Ready
With an optional wireless dongle, the AH500ST supports wireless projection from any device, eliminating the need for cables and simplifying setup.
Safe Short-Throw Design
The 0.499 throw ratio allows for safe placement behind the hitter, reducing collision risks and eliminating shadows, making it ideal for compact golf simulator spaces.
Up to 200-Inch Display
Equipped with a professional-grade motorized lens, the AH500ST allows for easy screen size adjustments without the need for reinstallation, ensuring a seamless setup.
Vibrant Visuals
With 4000 lumens of brightness, 83% Rec. 709 color accuracy, and high contrast, the AH500ST delivers bright, sharp, and lifelike visuals, maintaining image quality even in well-lit environments.
True-to-Life Golf Colors
The exclusive Golf Mode enhances color accuracy, replicating authentic greens, fairways, and course terrain, making your golf simulation more realistic.
Durable and Reliable
The IP5X-rated dust-proof sealed engine ensures long-lasting performance in varied temperatures (32-104°F), reducing the need for frequent maintenance and filter replacements.
Long-Lasting Laser Technology
With up to 20,000 hours of light source life, the AH500ST minimizes maintenance costs, providing a durable and reliable projection solution for extended golf simulation sessions.
What's Included
Included with Your Purchase:
-
BenQ AH500ST Projector ×1
-
Remote Control with Batteries ×1
-
Power Cord ×1
-
Quick Start Guide ×1
-
Warranty Card ×1
-
Lens Cover ×1
Specifications
Display
-
Brightness (ANSI Lumens): 4000
-
Resolution: 1080P (1920 × 1080)
-
Native Aspect Ratio: 16:9
-
Contrast Ratio (FOFO): 3,000,000:1
-
Display Color: 30-bit (1.07 billion colors)
-
Light Source: Laser
-
Light Source Life:
-
Normal: 20,000 hrs
-
ECO: 38,000 hrs
Optical
-
Throw Ratio: 0.499
-
Zoom Ratio: Fixed
-
Lens: F# = 2.8, f = 7.46mm
-
Projection Offset (Full-Height): 112%
-
Keystone Adjustment: 2D, Vertical ± 30°, Horizontal ± 30°
-
Rec. 709 Coverage: 83%
-
Picture Modes: 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2
Compatibility
-
Input Lag:
- 16.7 ms (1080P 60Hz)
- 8.3 ms (1080P 120Hz)
-
Resolution Support: VGA (640 × 480) to 4K UHD (3840 × 2160)
-
Horizontal Frequency: 15K ~ 102KHz
-
Vertical Scan Rate: 23 ~ 120Hz
I/O Interface
-
HDMI In: x2 (HDMI-1 & HDMI-2, 2.0a/HDCP2.2)
-
LAN (RJ45): x1
-
USB Type A: x1 (USB Type A-4, 2.0/Wireless Dongle)
-
USB Type Mini B: x1 (Service)
-
RS232 In (DB-9pin): x1
Audio
-
Speaker: x1 (10W)
-
Audio Out (3.5mm Mini Jack): x1
Environment
-
Operating Temperature: 0 ~ 40℃
-
Power Supply: AC 100 to 240 V, 50/60 Hz
-
Typical Power Consumption (110V): 250W @ 110Vac
-
Standby Power Consumption: <0.5W
-
Network Standby Power Consumption: <2W
-
Acoustic Noise (Typical/Eco) (dB): 35/32
Accessories
-
Wireless USB Dongle (Optional): 5201BS
-

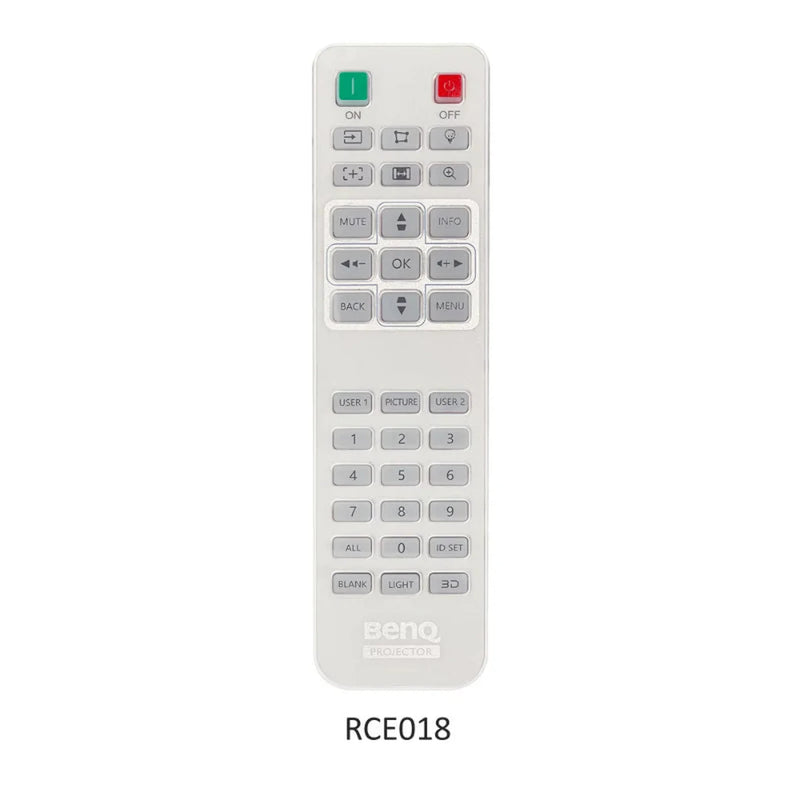

Remote Control with Battery: RCE018
-
Power Cord (by region): x1 (3.0M)
-
Quick Start Guide: x1
-
Warranty Card (by region): Yes
-
Lens Cover: Yes
Dimension & Weight
-
Metric Dimensions (WxHxD): 320.0 × 130.6 × 255 mm
-
Imperial Dimensions (WxHxD): 12.6" × 5.1" × 10.0"
-
Metric Net Weight: 5.1 kg
-
Imperial Net Weight: 11.2 lbs
Projection System
Product Resources
BenQ AH500ST User Manual
