Description
The BenQ AH30ST projector is designed for high-quality golf simulation in tight spaces. Its short-throw lens allows it to be mounted behind the player, minimizing shadows and impact risk. The long-lasting LED light source delivers up to 30,000 hours of use in Eco Mode, while the exclusive Golf Mode enhances realism with vivid course visuals.
With a 102.5% offset for low-angle projection, it produces sharp images with little need for keystone correction. Built-in Screen Fill technology ensures the display matches standard aspect ratios automatically. Optional wireless functionality (via EZC-5201BS dongle) and a dust-resistant, filter-free design make it a low-maintenance, flexible solution.
What's Included:
- BenQ AH30ST Projector

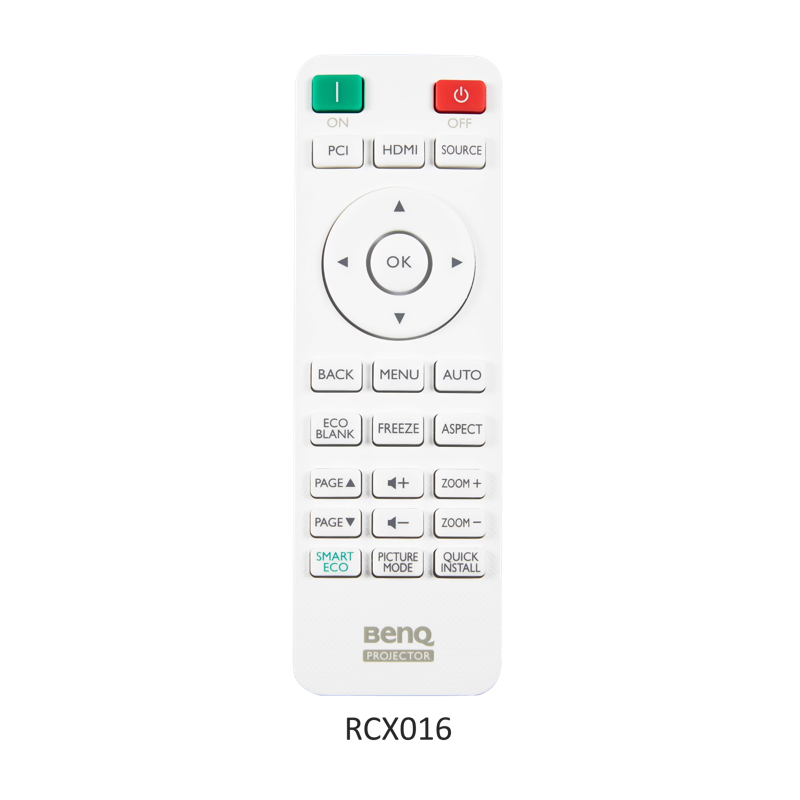

- Remote Control with Battery (RCX016)
- Power Cord (1.8M)
- Quick Start Guide
- Warranty Card
- Lens Cover
Product Features
Short Throw Safety Placement
-
Allows projector to be placed behind the hitting zone
-
Prevents player shadows and protects from impact
-
Ideal for garages or rooms with limited ceiling height
Dedicated Golf Visual Mode
Automatic Screen Fit
-
Adjusts display to fit screen sizes with 1:1, 4:3, 16:9, or 16:10 ratios
-
Removes the need for manual resizing
Wireless Capability
Filter-Free, Dust-Resistant Design
Long-Life LED Engine
Eco-Friendly Operation
What's Included
Included with Your Purchase:
Specifications
Display
-
Brightness: 3000 ANSI Lumens
-
Native Resolution: 1920x1080 (1080P)
-
Native Aspect: 16:9
-
Supported Ratios: 1:1, 4:3, 16:9, 16:10
-
Contrast: 20,000:1
-
Color Depth: 30-bit (1.07 billion colors)
-
Light Source: 4LED
-
Life Span: 20,000 hrs (Standard), 30,000 hrs (Eco)
Optics
Picture Settings
-
Color Modes: 3D, Bright, Cinema, Game, Golf, sRGB, User 1, User 2
-
Rec. 709 Coverage: 95%
Audio
-
Internal Speaker: 10W
-
Audio Out: 3.5mm Jack
Inputs & Ports
Environment
-
Operating Temp: 0–40°C
-
Voltage: 100–240V, 50/60 Hz
-
Power Usage: 237W
-
Standby: <0.5W
-
Noise Level: 32 dBA (Standard), 28 dBA (Eco)
Physical Dimensions
-
Inches: 11.95 x 4.23 x 8.69
-
Millimeters: 303.5 x 107.4 x 220.7
-
Weight: 5.84 lbs (2.65 kg)
Projection System
FAQ
Q: Can this projector be placed behind the golfer?
Yes, the short-throw lens supports rear placement without casting shadows or risking damage.
Q: What’s the advantage of 102.5% offset?
It eliminates the need to tilt the projector, reducing distortion and keeping the image sharp.
Q: Does it support wireless display?
Yes, with the EZC-5201BS dongle (sold separately), it supports full HD wireless projection.
Q: Can it be used in dusty or garage setups?
Yes, its sealed, filterless build is ideal for garage simulator environments.
Q: How long does the LED light last?
Up to 30,000 hours in Eco Mode, minimizing long-term costs.
